MAPNet Facilities

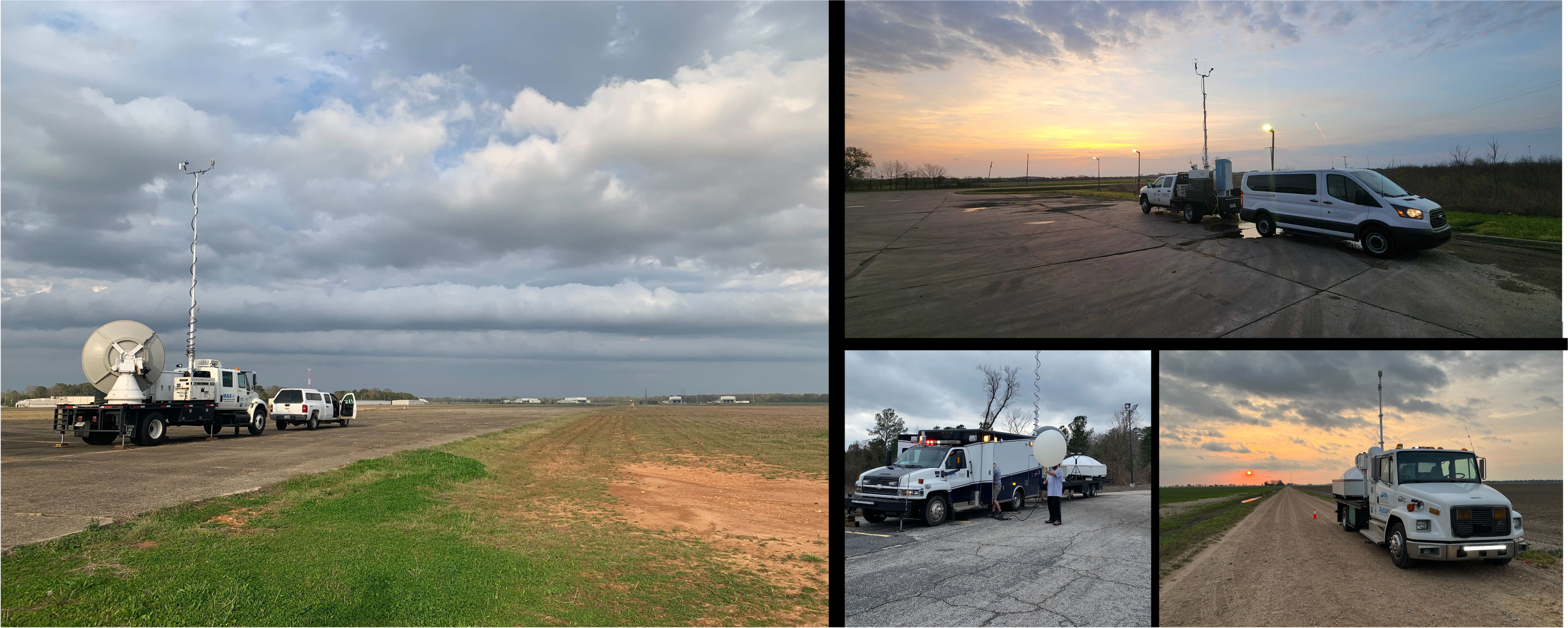

MAPNet facilities includes a diverse set of instruments that are designed to measure high temporal winds, thermodynamics, cloudbase/aerosol, and precipitation profiles within the boundary layer (BL) to middle troposphere in all weather conditions. MAPNet is funded through the NSF Facilities for Atmospheric Research and Education (FARE) Community Instruments and Facilities (CIF) program. The NSF FARE program provides national facilities for geoscience research. Based out of UAH SWIRLL, MAPNet consists of the Mobile Alabama X-Band dual polarization Radar (MAX), the Mobile Integrated Profiling System (MIPS), the Mobile Operated Doppler Lidar and Soundings (MoDLS), and the Rapidly Deployable Atmospheric Profiling System (RaDAPS). Together, these platforms provide distinct advantages for mobile operations, and offer experimental design flexibility.

MAPNet was formed to address the limitations of lower atmospheric observations, which limit our knowledge of lower atmospheric phenomena and processes. Most notably, data collected during the recent VORTEX-SE field campaign by the MAPNet facilities suggest considerable spatial and temporal heterogeneity within the boundary layer (BL) that are on a smaller scale than what can be captured by 1-2 profiling systems. MAPNet offers the unique opportunity to utilize all four systems to help document and understand these fine-scale features.

The MIPS

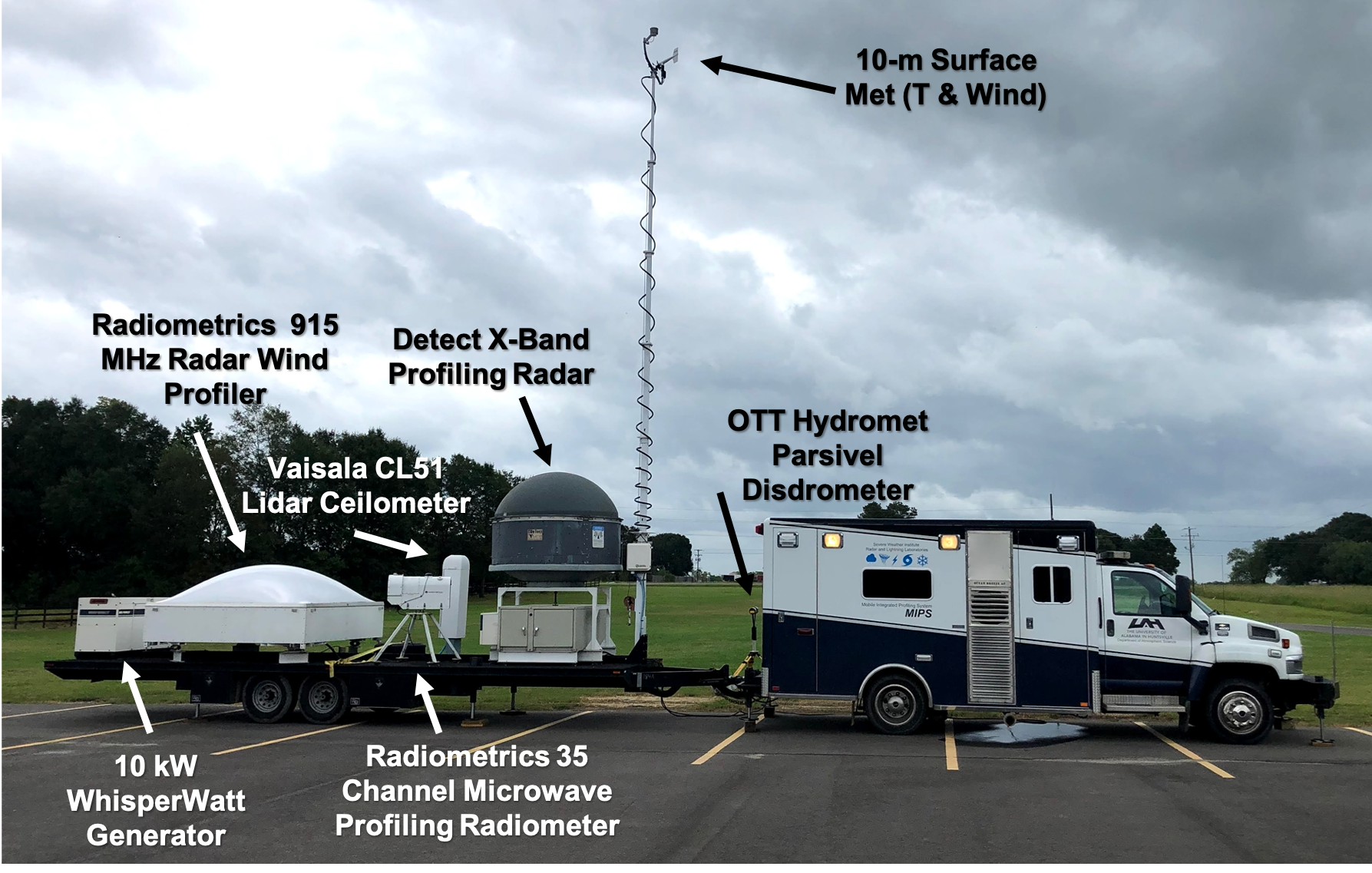

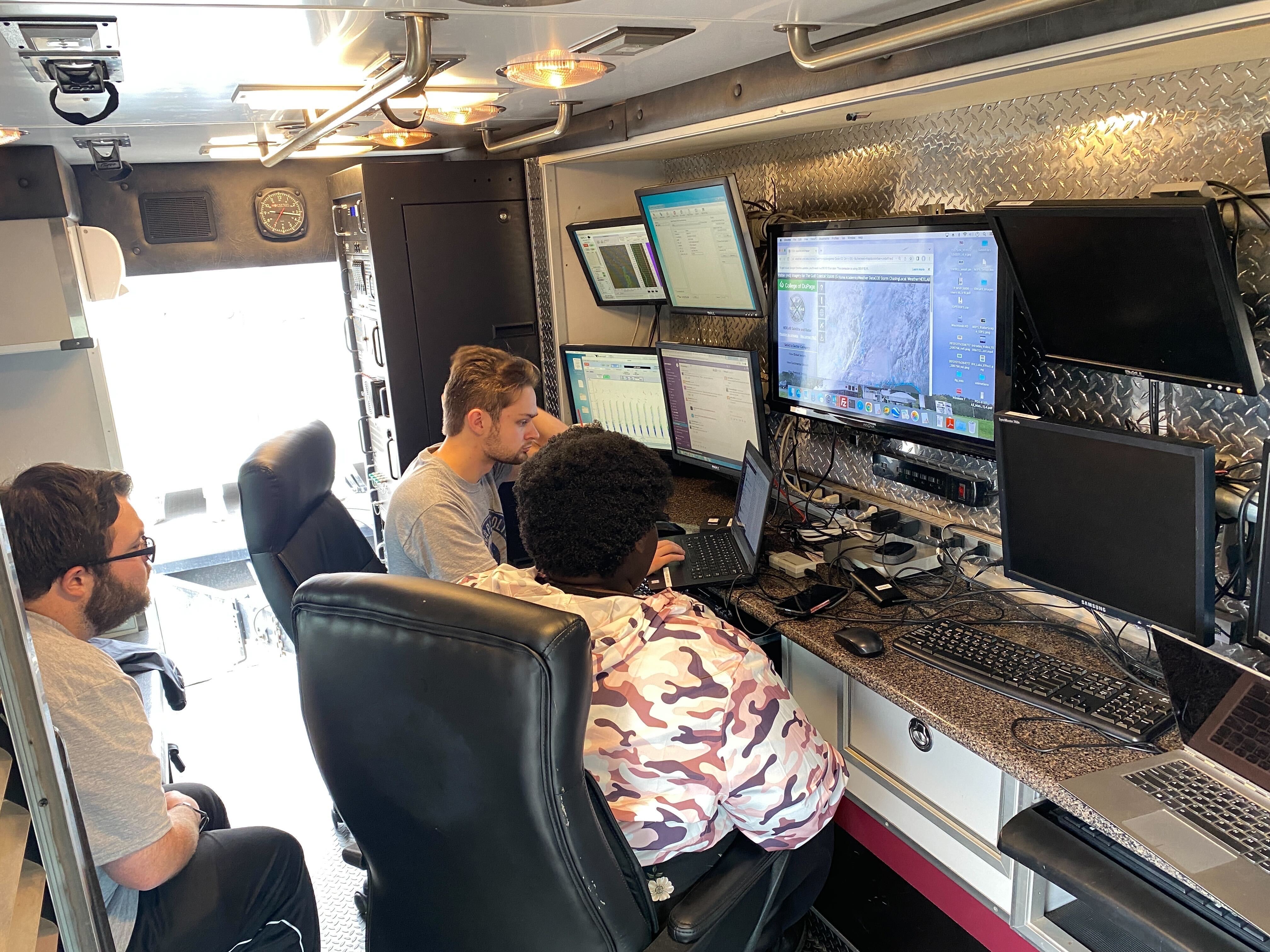

Mounted to a 28 ft flatbed trailer and pulled by a repurposed Chevrolet Ambulance, the MIPS system includes a 915 MHz Radar Wind Profiler (RWP), X-Band Profiling Radar (XPR), 35-channel Microwave Profiling Radiometer (MPR), lidar ceilometer, and in-situ meteorological surface sensors at two and ten meters. The large trailer provides enough space for the option to add a Doppler Sodar and a Parsivel Disdrometer for additional measurements. The large area in the back of the truck allows up to four personnel to fit comfortably inside.

The MIPS deployed for the 2017 Solar Eclipse.

The MIPS deployed for Hurricane Laura (2020).

The RaDAPS

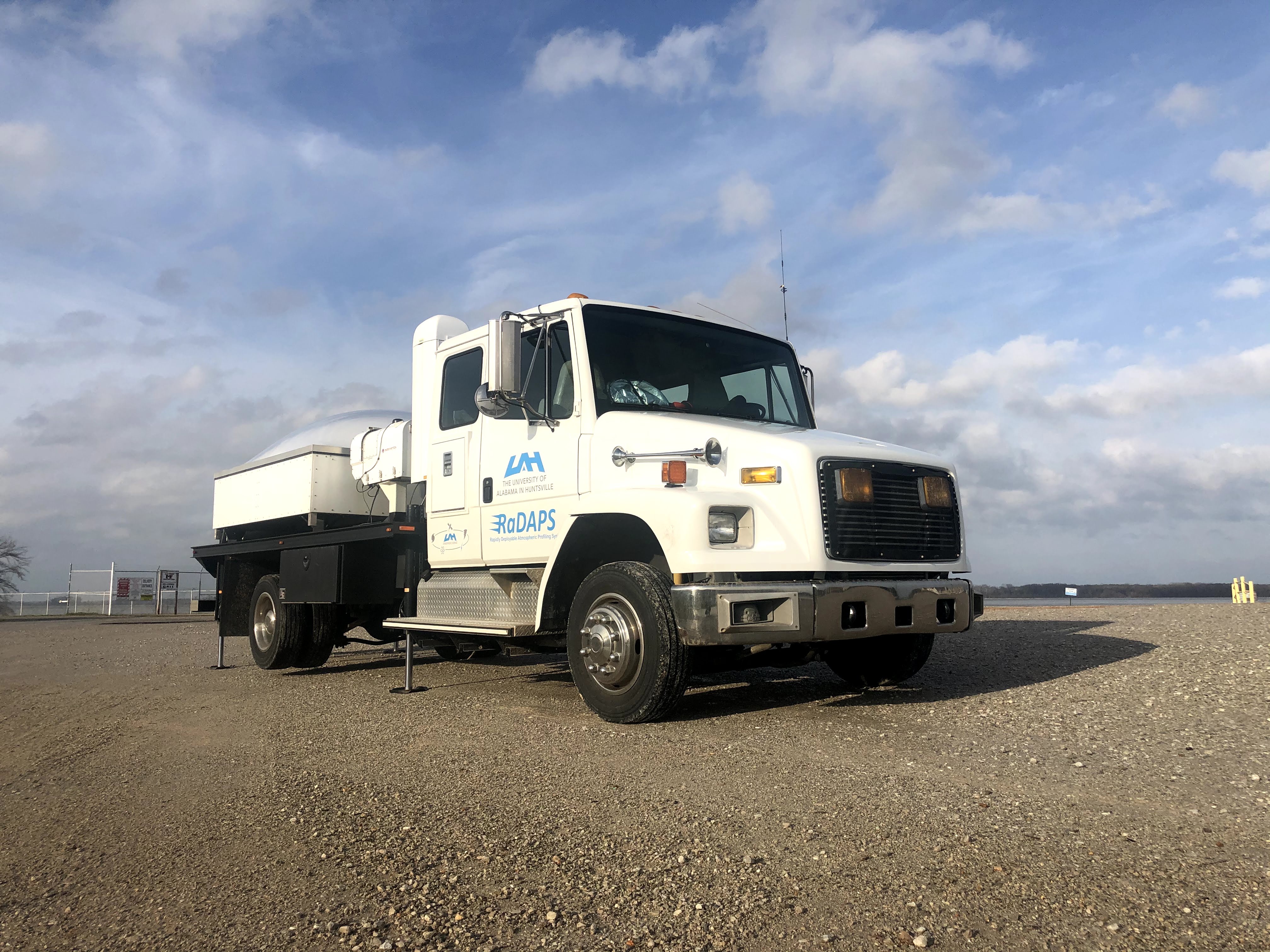

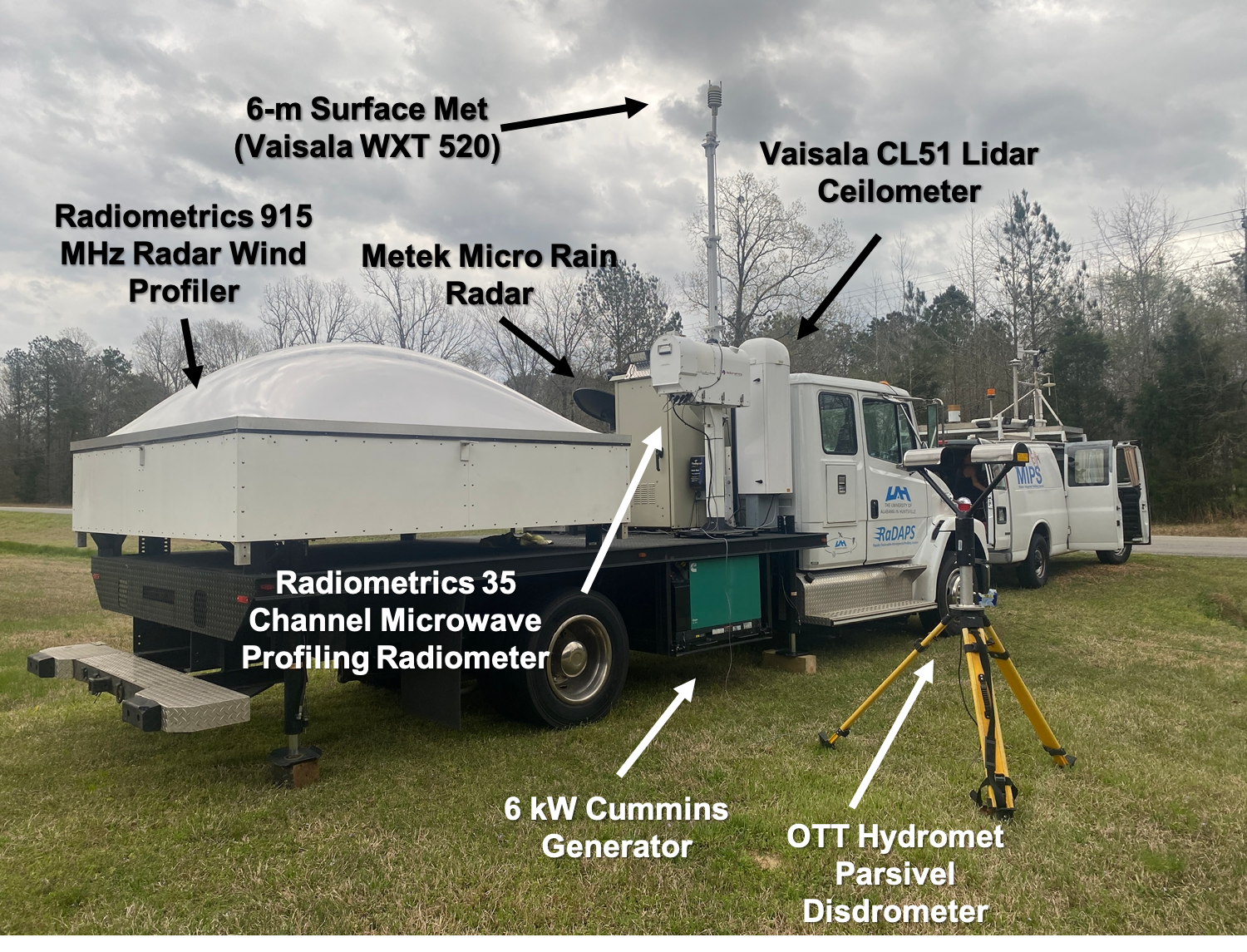

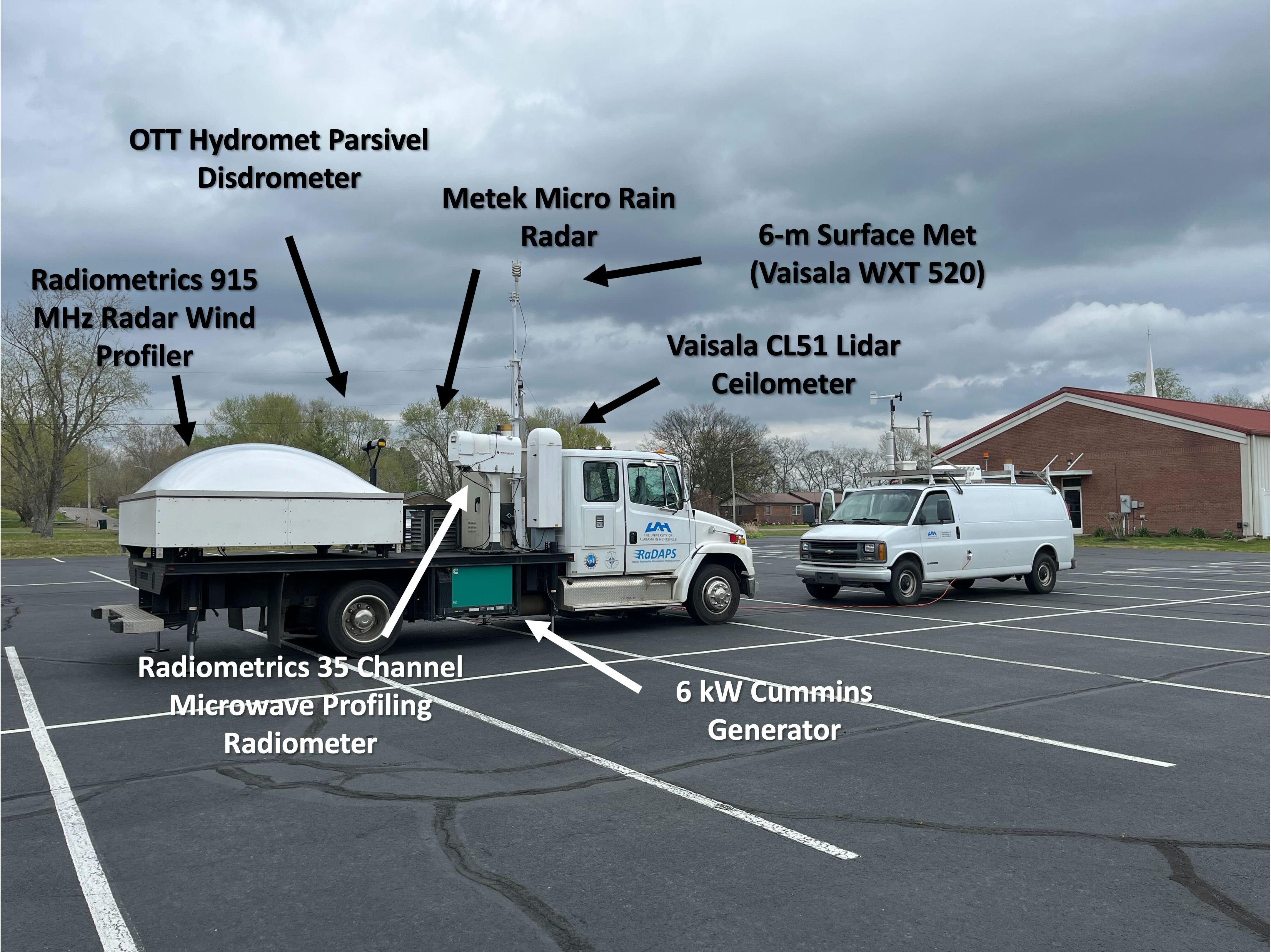

Like The MIPS, the RaDAPS truck is a converted medium duty ambulance. However, the patient area was removed and a 15ft flatbed was built onto the back of the truck. The system includes a similar setup to MIPS as it has a 915 MHz RWP, a 35-channel MPR, and lidar ceilometer. However, instead of the XPR, it holds a Metek Micro Rain Radar (MRR-2). In-situ surface measurements are obtained at 6 meters using a telescoping mast. This system offers enough space for two personnel to work comfortably.

RaDAPS deployed at the Tennessee River for a VORTEX-SE deployment.

RaDAPS deployed for Hurricane Ida (2021).

The MoDLS

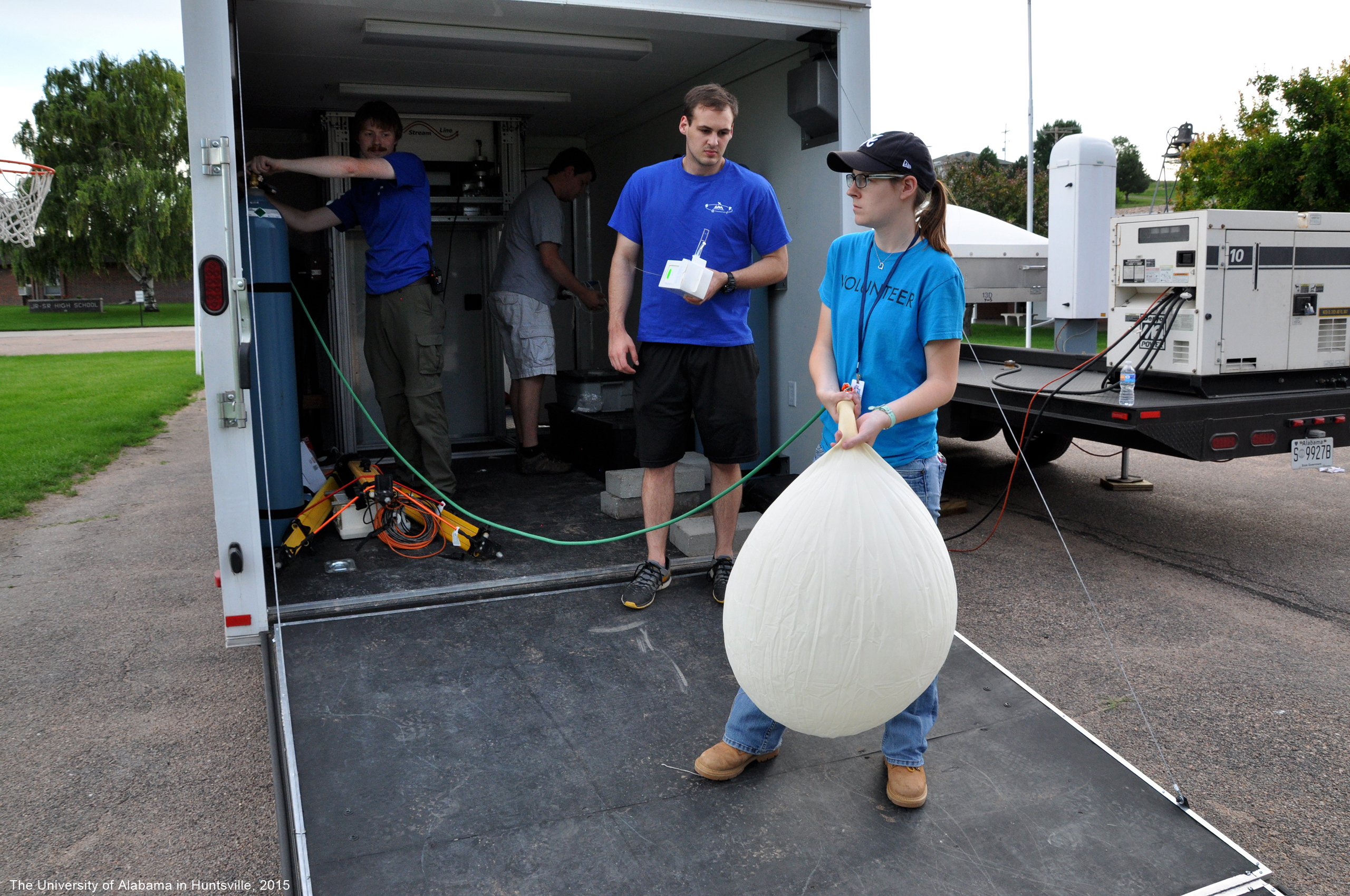

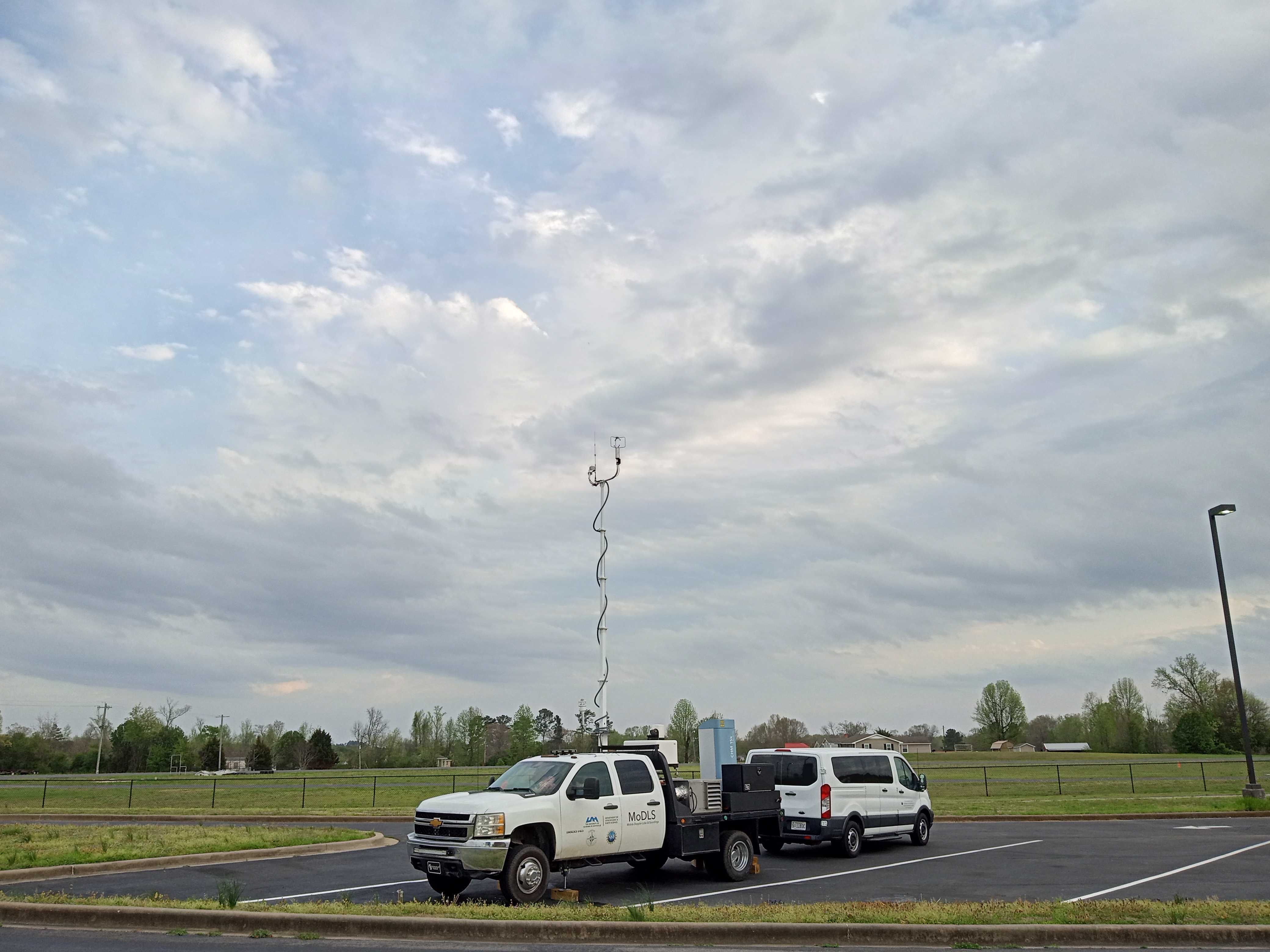

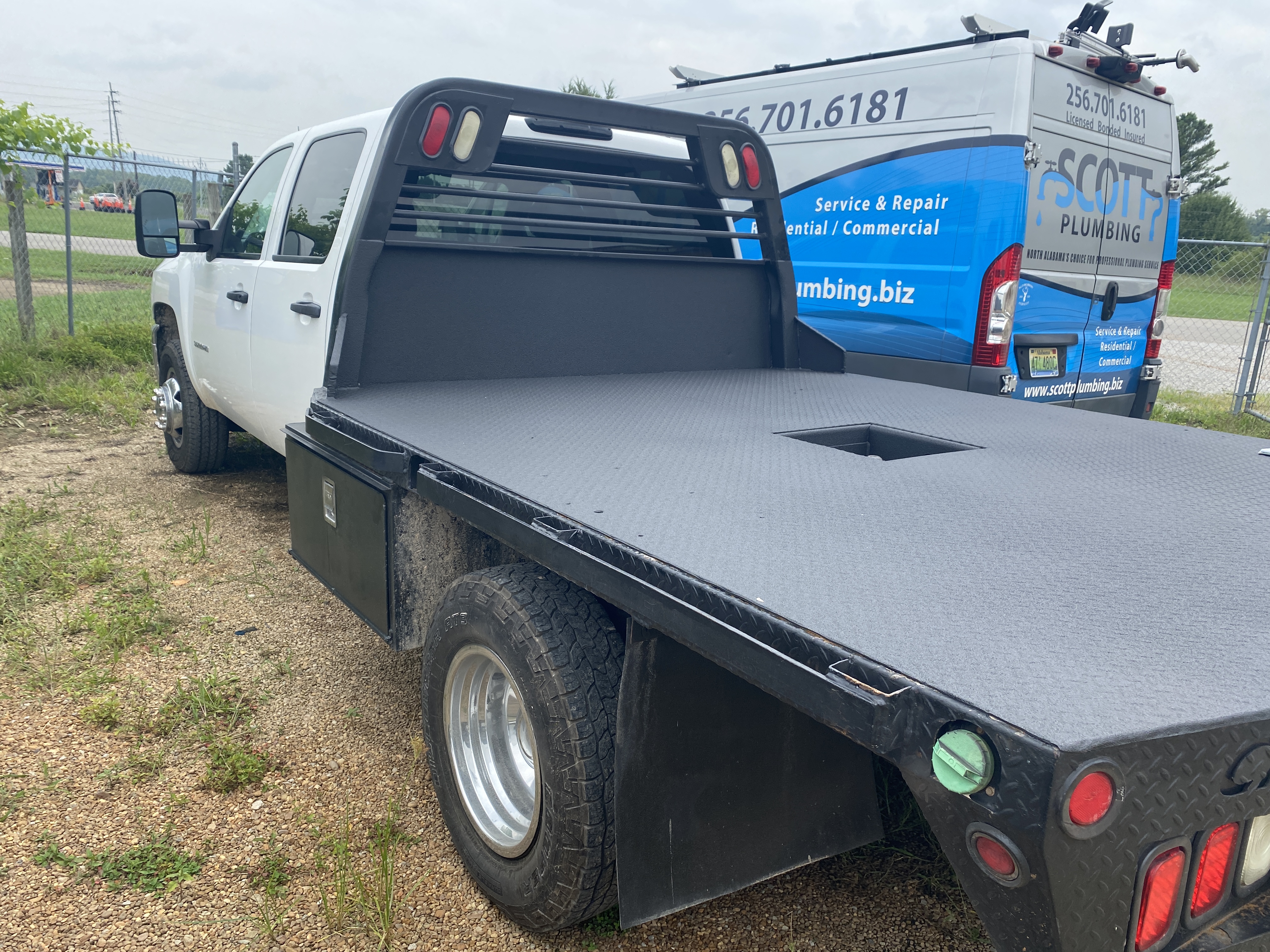

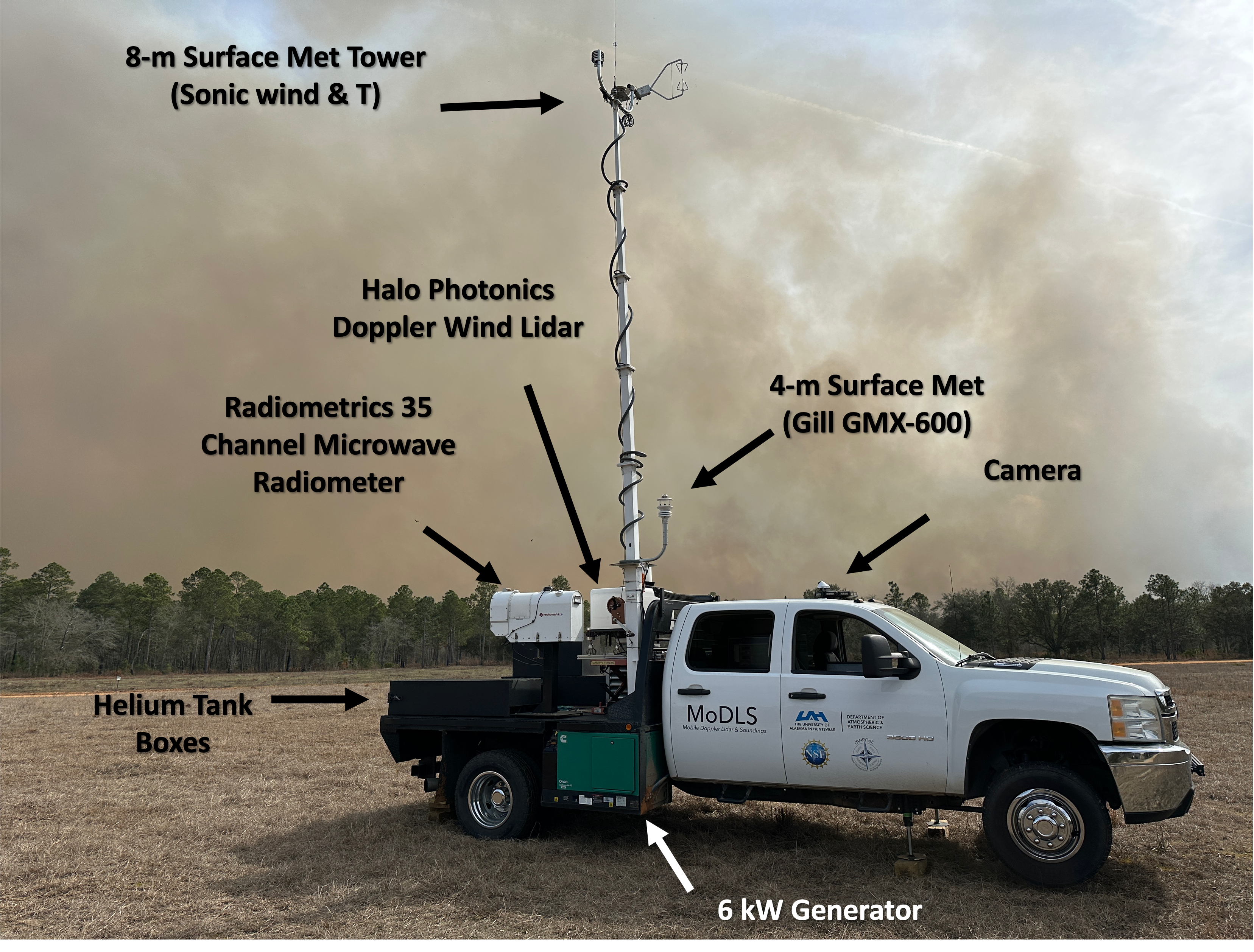

The MoDLS platform highlights the scanning Halo Photonics Doppler Wind Lidar (DWL) and a 35-channel MPR identical to the MIPS and RaDAPS platform. The current configuration is packaged within an 18-ft enclosed trailer which places the lidar scanner 10-ft AGL. The enclosed trailer offers room within a protected environment to fill balloons for an accompanying weather balloon sounding system. With the enclosed trailer, 2-3 personnel can work comfortably inside. The current configuration is being re-constructed onto a flatbed pickup truck that will accommodate the DWL, MPR, and will provide a 6-m telescoping mast with in-situ surface measurements sensors. This more agile MoDLS will allow for improved safety in high wind conditions, shorten setup time, and improve drivability. The new configuration will accommodate up to three personnel comfortably.

MoDLS deployed for PECAN.

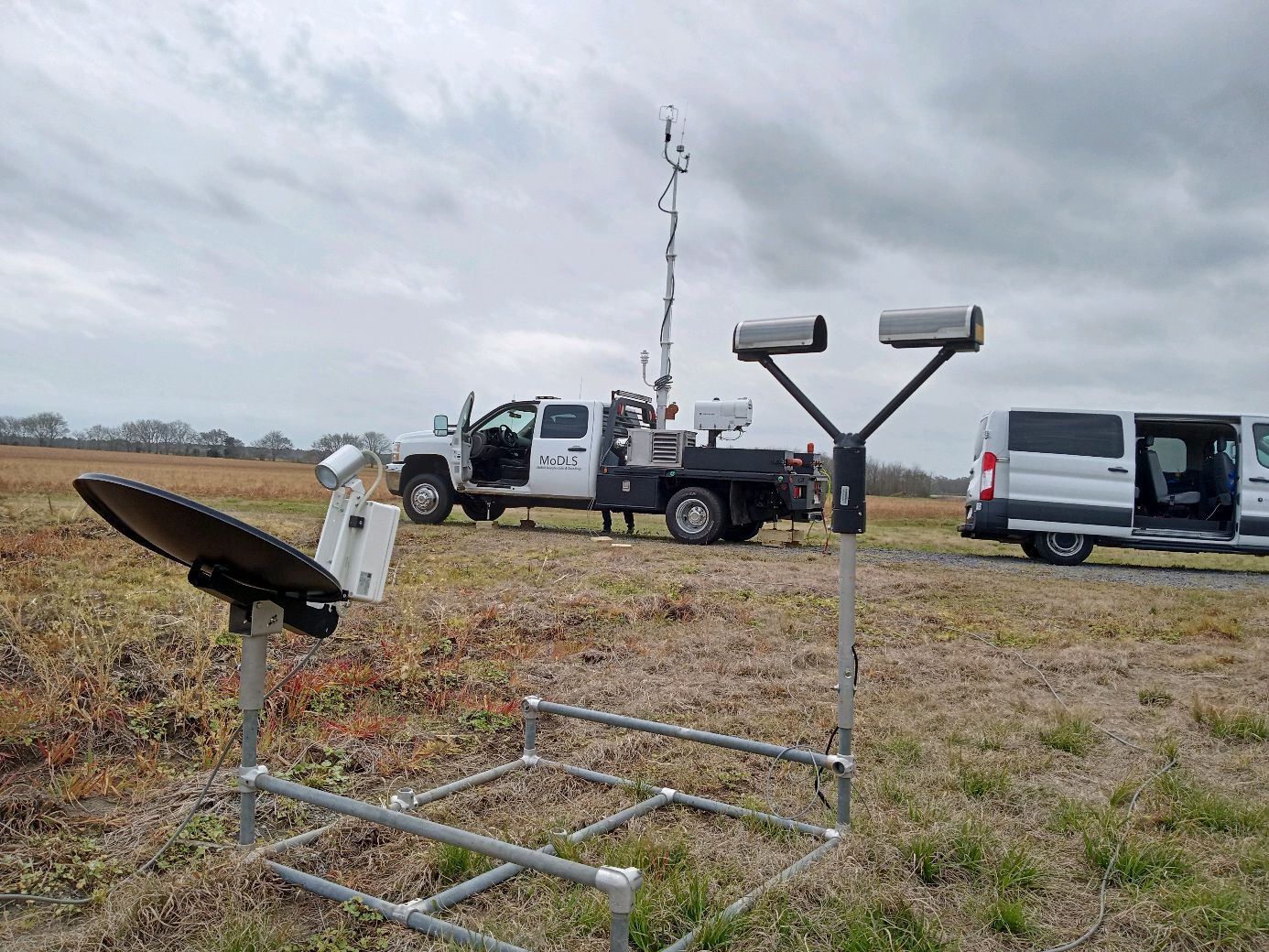

MoDLS deployed for a PERiLS IOP.

The MAX

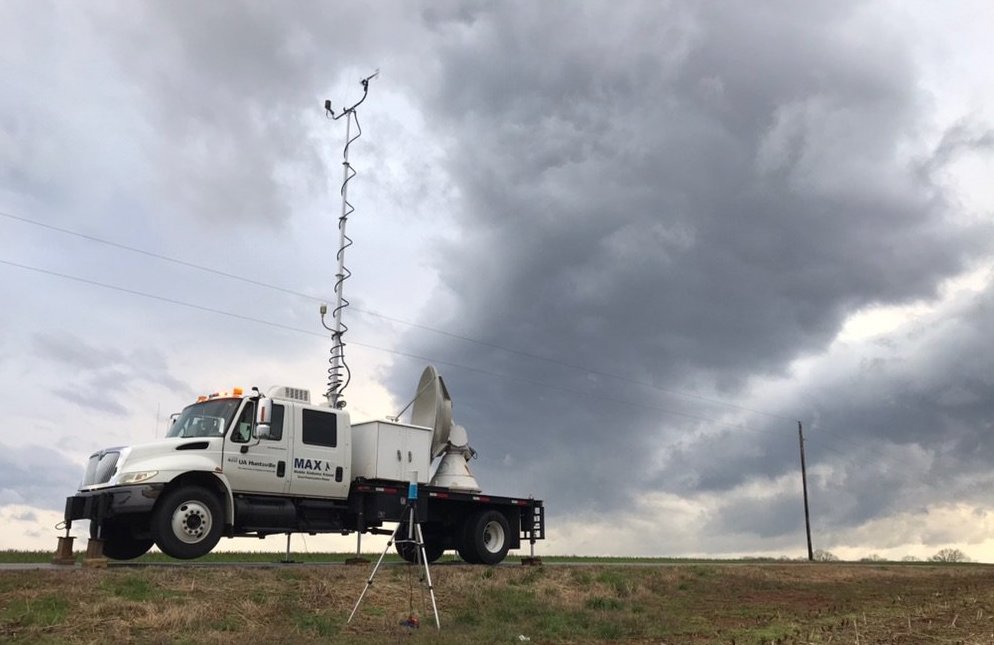

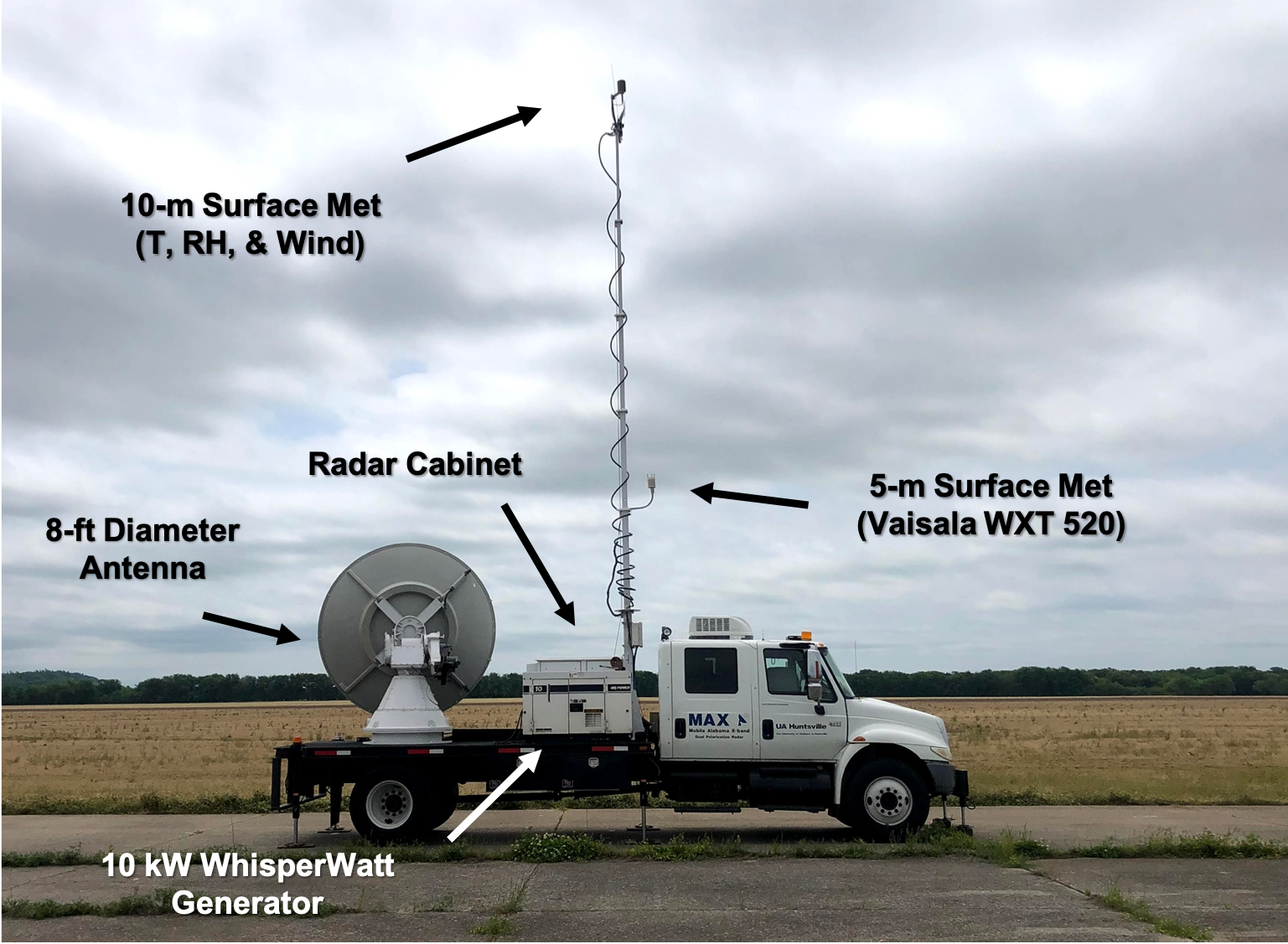

The MAX is a scanning X-band dual-polarization Doppler radar mounted on a flatbed built onto an International 4300 truck chassis. The radar has an 8-ft dish, 1.0 degree beam width, uses a 250 kW magnetron transmitter and Sigmet RVP-8 processer. The truck also holds a 10-m telescoping mast that has in-situ surface measurement sensors. This truck provides enough room for up to three personnel to work comfortably.

MAX deployed in support for VORTEX-SE.

MAX deployed for severe weather in N AL.
