October 29 , 2012

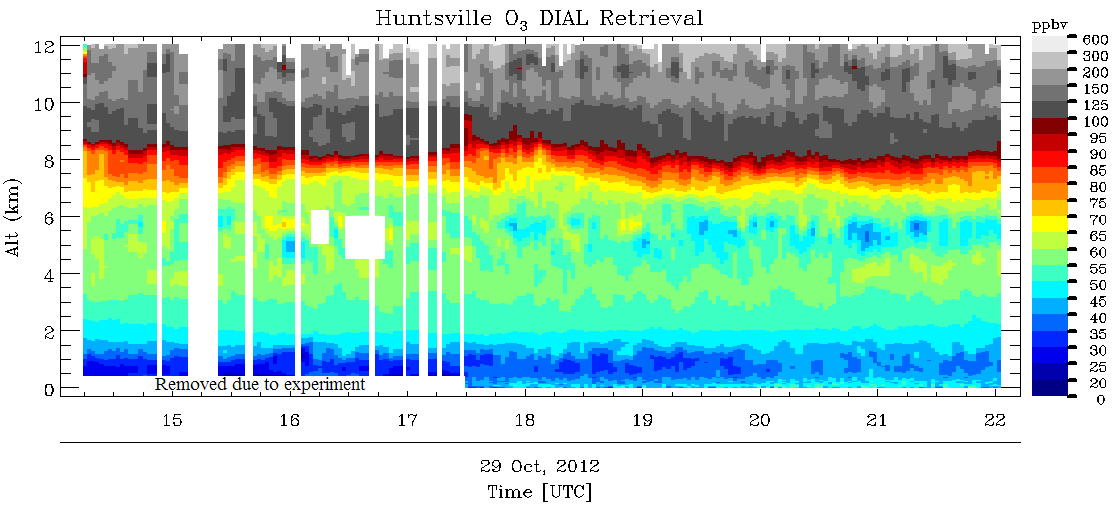

Ozone lidar retievals with 2-min temporal resolution. For the PBL ozone retrievals, mini-receiver channel (retrieval alt from 0 to 1km) data are averaged over a 22.5-m (six 3.75-m bin) range cell and 4'' receiver channel-1 (retrieval alt from 0.3 to ~2km) data are averaged over a 45-m (twelve 3.75m bin) cell. Ozone retrievals below 500m before 17:30 UTC are removed due to the experiments on the lidar configuration.

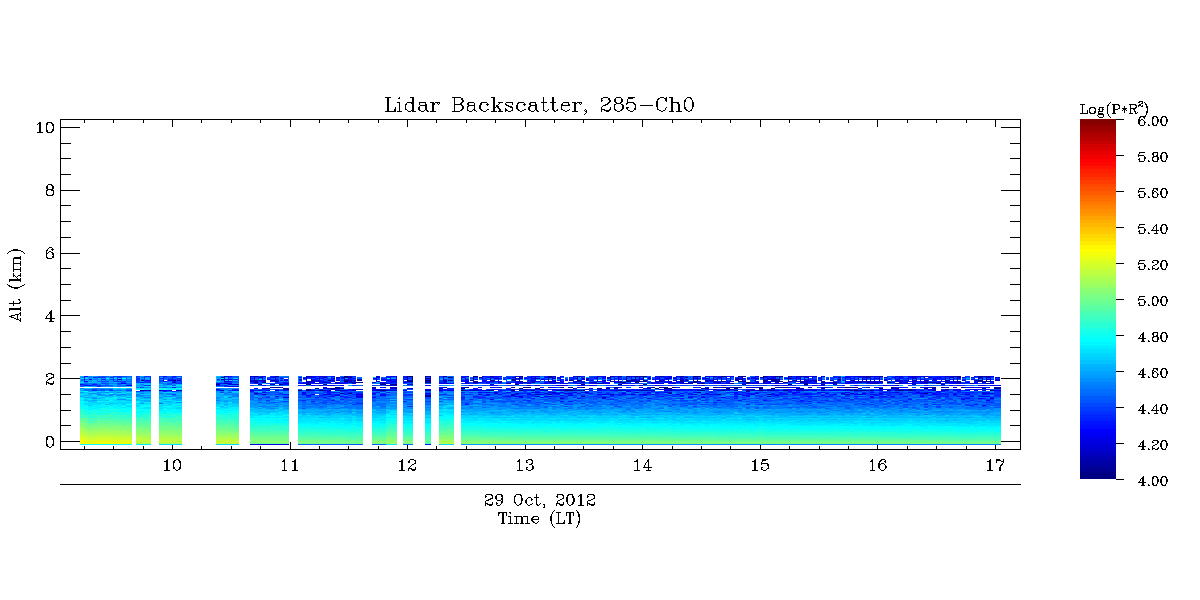

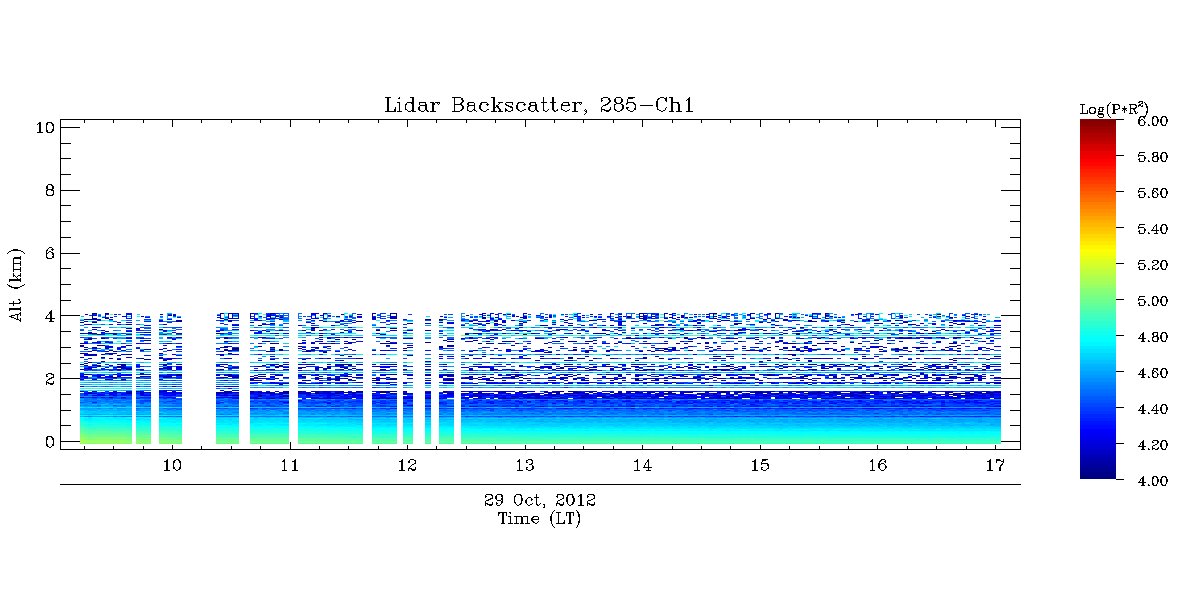

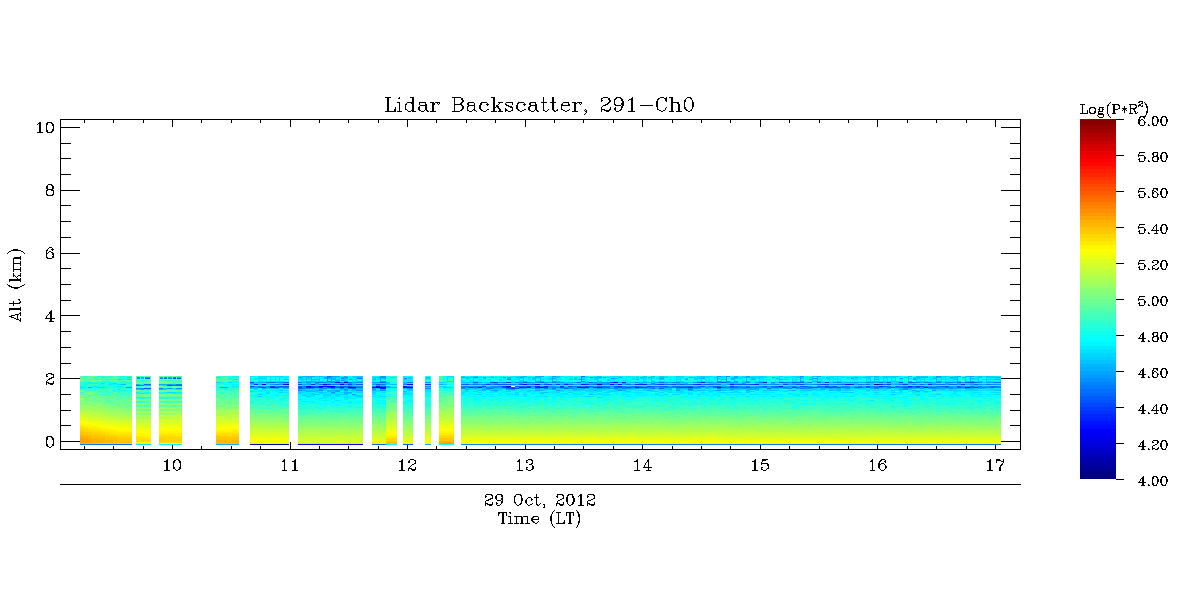

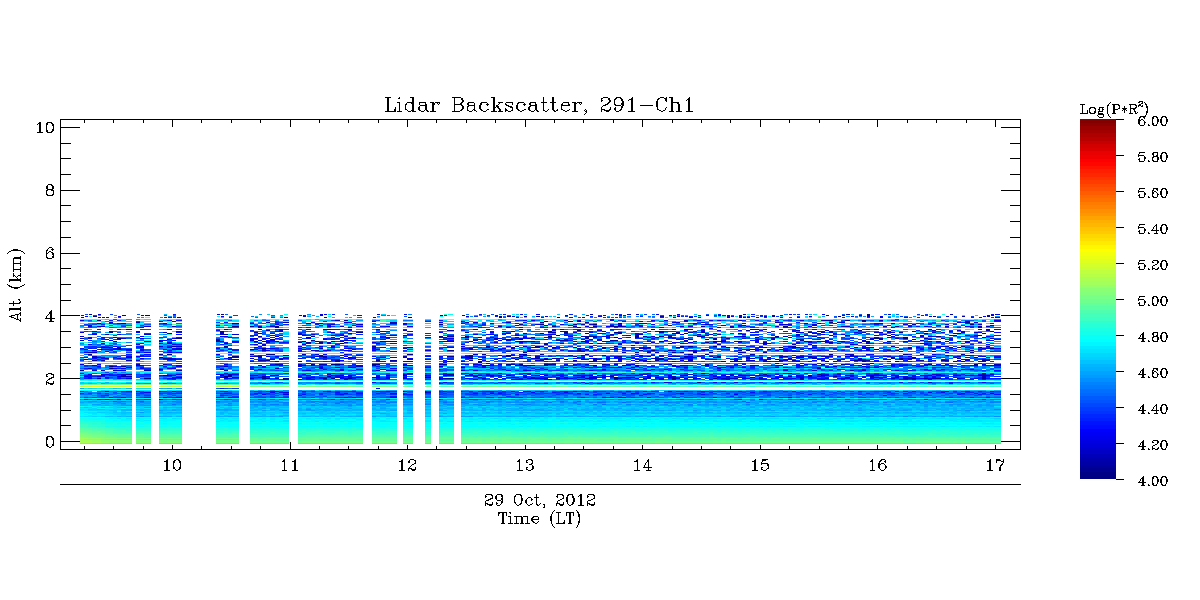

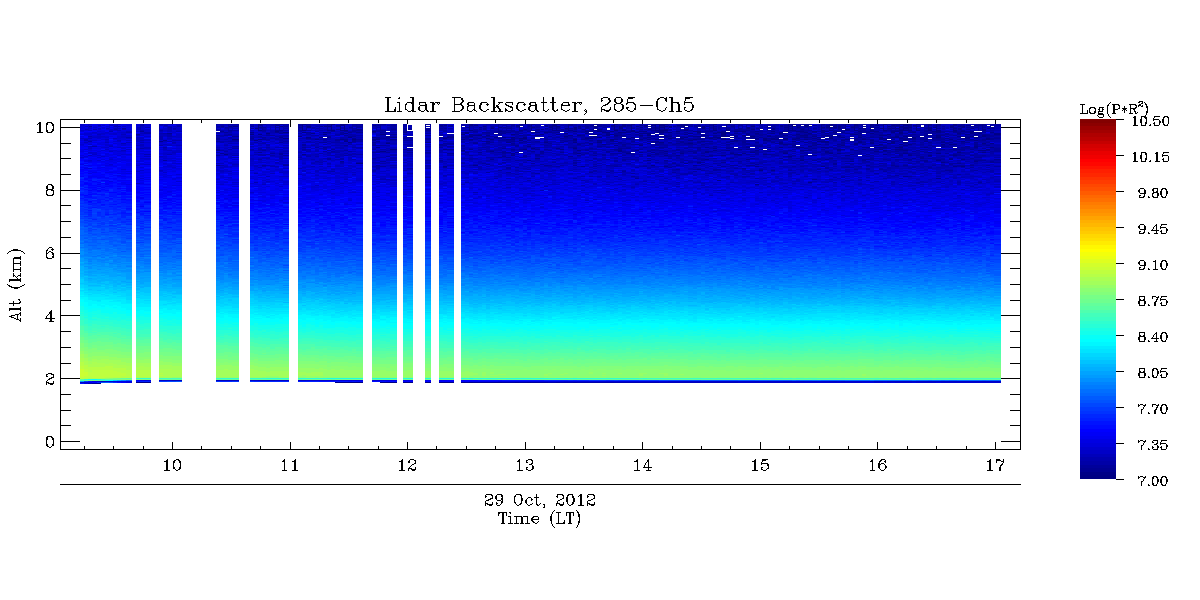

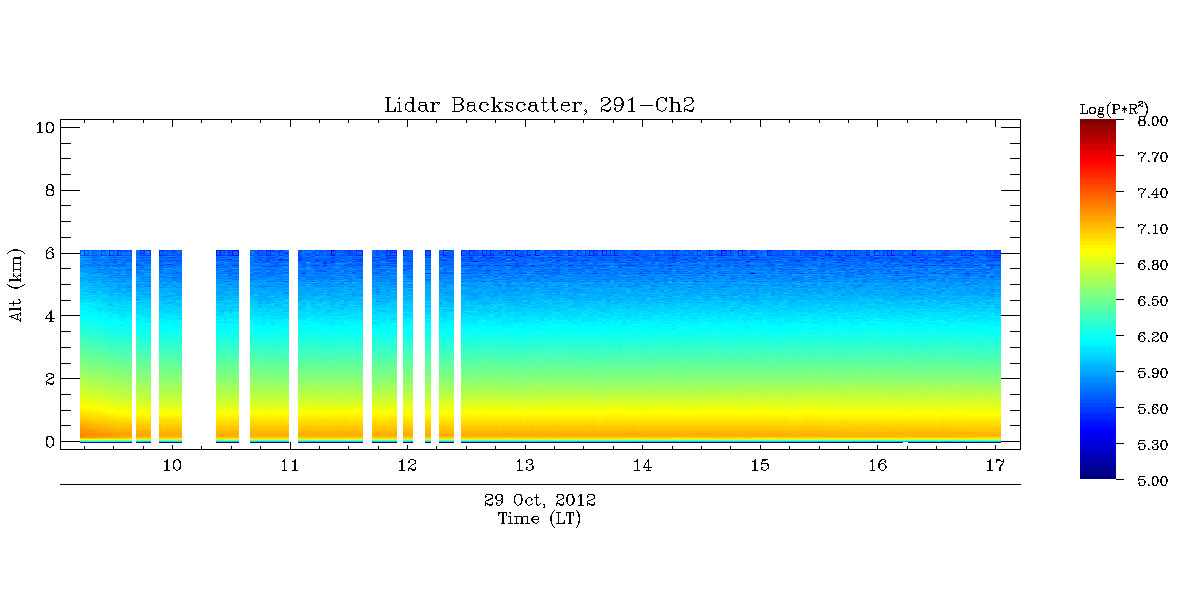

Range-corrected signal
