May 10 , 2012


Note lower tropopause due to the recent wave activities and two ozone layers, one at 8km clearly from the stratosphere and the other at ~3km which seems also aged stratospheric ozone. The increasing PBL ozone looks like due to the interaction between PBL and FT, but need further confirmation.

GOES upper tropospheric moisture. (http://cimss.ssec.wisc.edu/goes/rt/)

Today's GOME total ozone. (http://www.osdpd.noaa.gov/ml/air/gome.html)

Yesterday's total ozone.

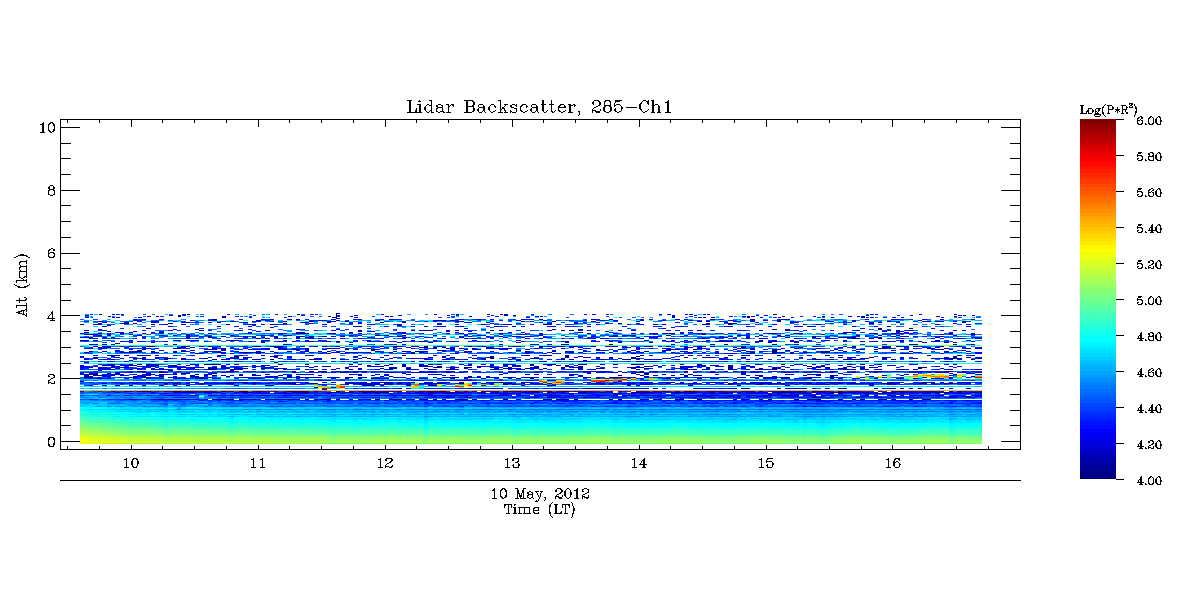

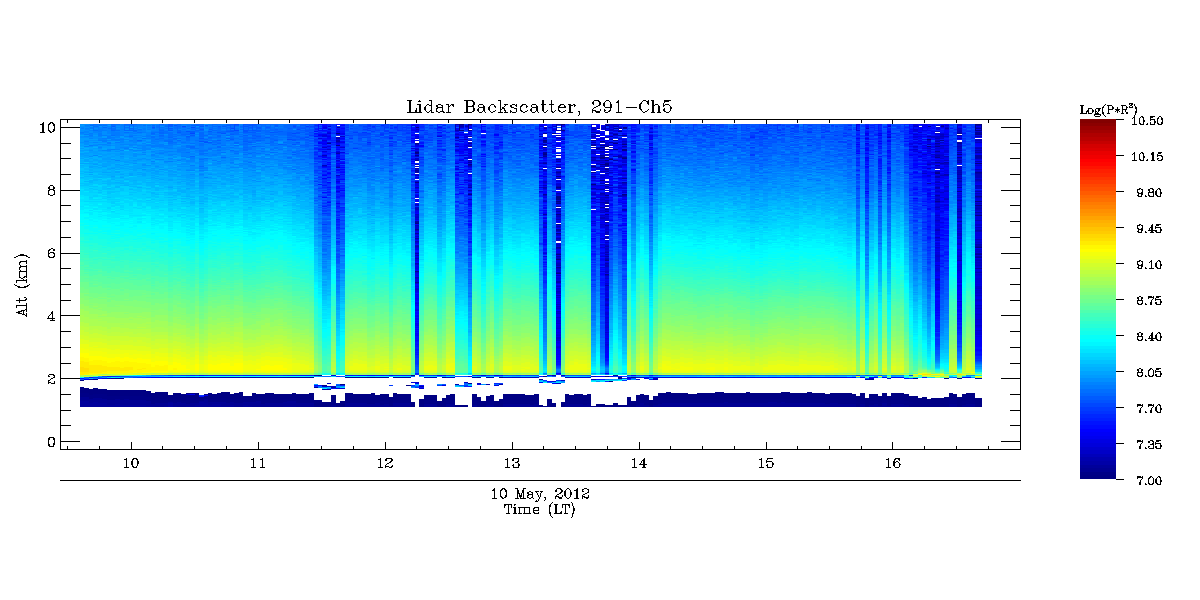

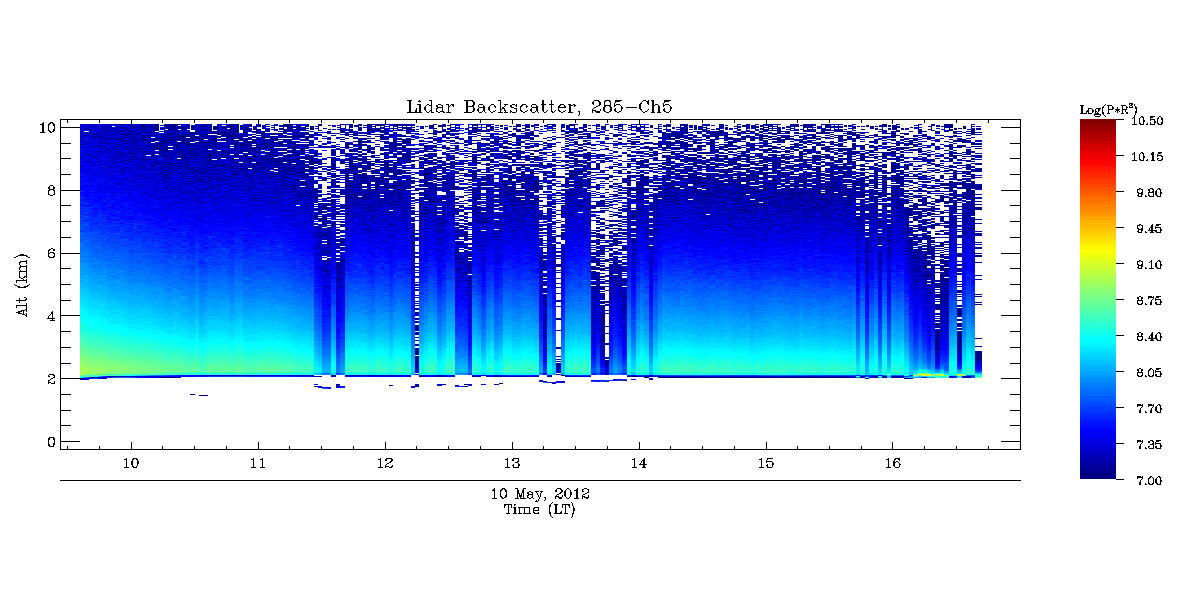

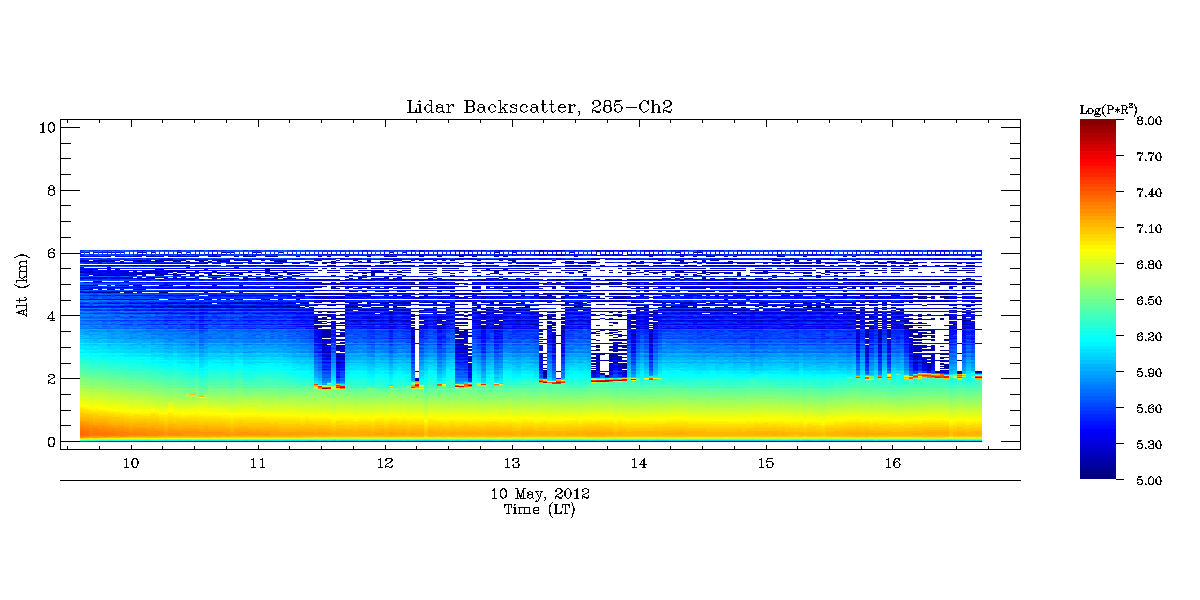

Range-corrected signal
