7/14/08
DIAL Daily Activity Log | Telescope | ||||||||||||
Date: | 7/14/2008 | Time Zone: | GMT-5 | Type: | Big | Little | |||||||
Operator: | Kuang | Primary Diameter | 16'' | 4'' | |||||||||
Viewing Condition | clear | after yesterday's raining | F/# | 4.5 | 1 | ||||||||
Field Stop | 1.5 mrads | 4.3mrads | |||||||||||
Lasers | |||||||||||||
HV (kV) | 1064nm (W) | 532nm (W) | Yellow(mW) | UV(mW) | BBO Crystal | power after data acquisition | Electronics | ||||||
285 Laser: | 65 | 289.114 | 49 | Ch4 and 5 | Ch 1, 2, 3 | ||||||||
291 Laser | 52 | 297.025 | 44 | PMT | EMI8931QA | R7400U-03 | |||||||
found a slight leaking fo r291 last Fri., fix this leaking today and then align the 291 dye laser | Voltage | 1850V | 800V | ||||||||||
Are the lasers and tlelescopes aligned before taking data | Yes | ||||||||||||
Ch5 PMT Serial # | 49 | ||||||||||||
Ch4 PMT Serial # | 28 | ||||||||||||
LICEL | |||||||||||||
Primary Activity: | Ch1 | Ch2 | Ch5 | ||||||||||
Disc Level | 8 | 8 | 8 | ||||||||||
Data Description | ADC Range (mV) | 100 | 500 | ||||||||||
Filter | Delay (us) | ADC range of Ch1 | |||||||||||
File Name | Time (local) | Shots | Ch1 | Ch2 | Ch5 | Ch1 | Ch2 | Ch5 | |||||
H0871414.153122 | 14:14 | 2400(2min) | BP | BP | BP | 0 (constant gate) | ~4 | 0 | 500 | ||||
to | |||||||||||||
H0871415.563414 | 15:56 | 500 | |||||||||||
Should have used 100mV range for ADC. The saturation below 100m doesn't matter. | |||||||||||||
H0871415.590789 | 100 | ||||||||||||
to | |||||||||||||
H0871416.363748 | |||||||||||||
analyze data, find the channel 5 could be misaligned because ch2 is more consistent with model, then align both lasers with big telescope | |||||||||||||
H0871416.485345 | 16:48 | ||||||||||||
H0871417.491775 | 17:49 | ||||||||||||
align 291 again | |||||||||||||
H0871417.570920 | |||||||||||||
H0871505.034466 | 5:03 | ||||||||||||
The data before 18:00 look having problem because channel 1 data/model shape is different with that of channel 2. |

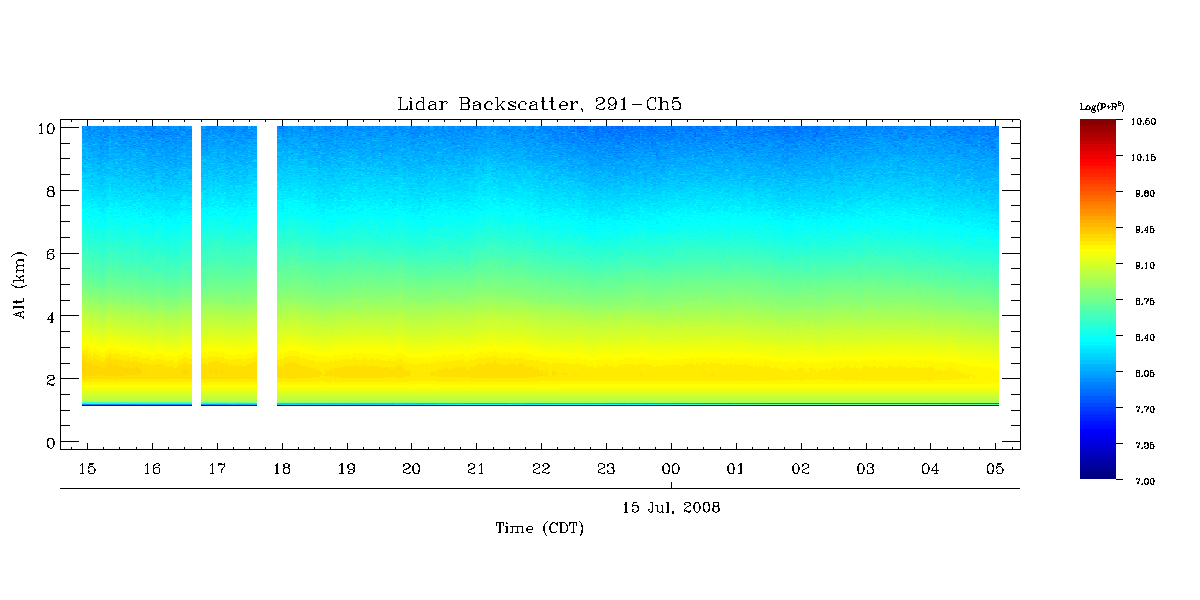

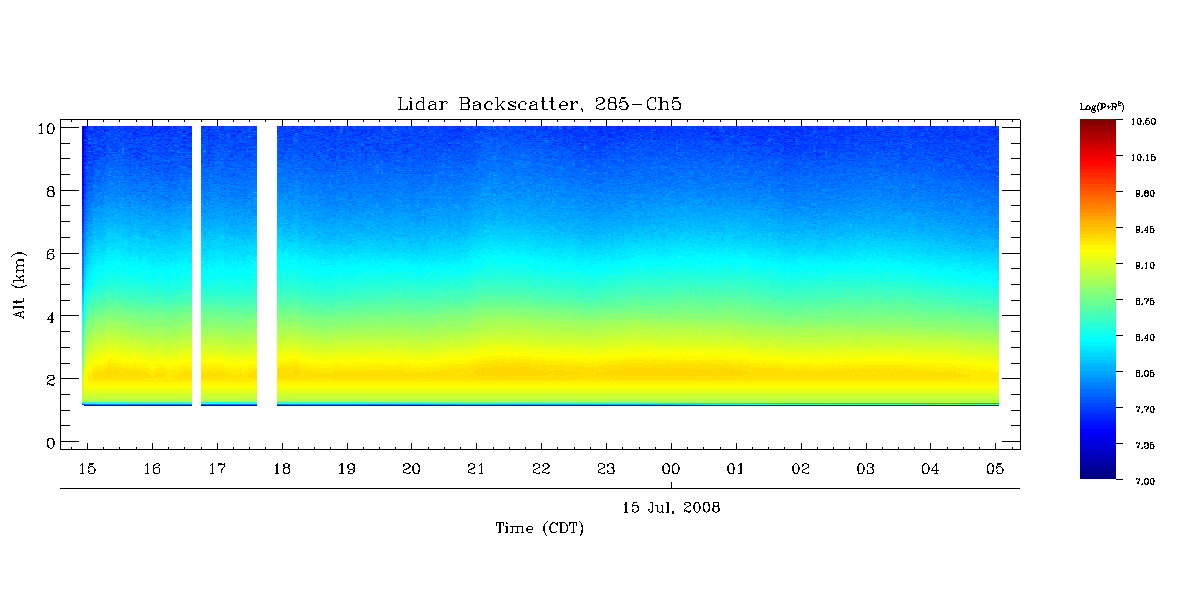

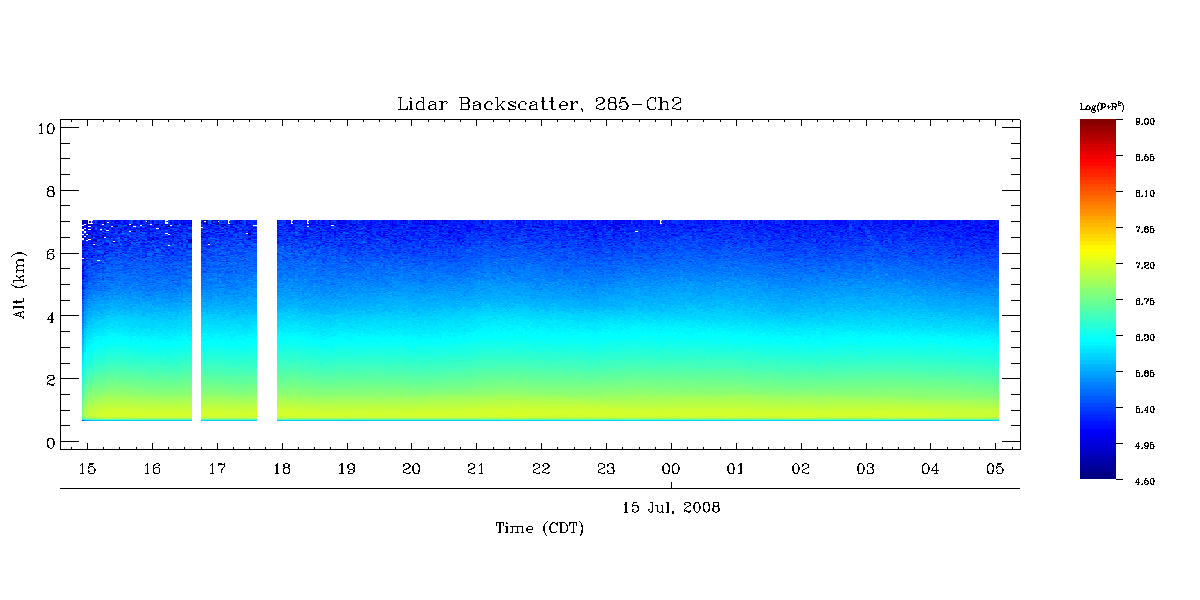

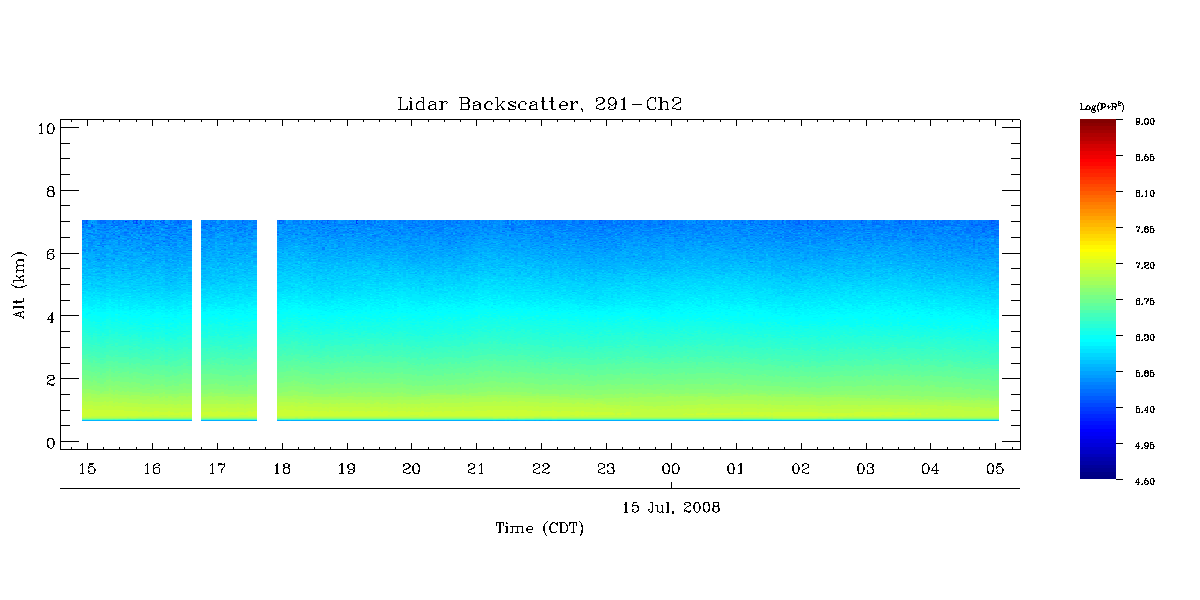

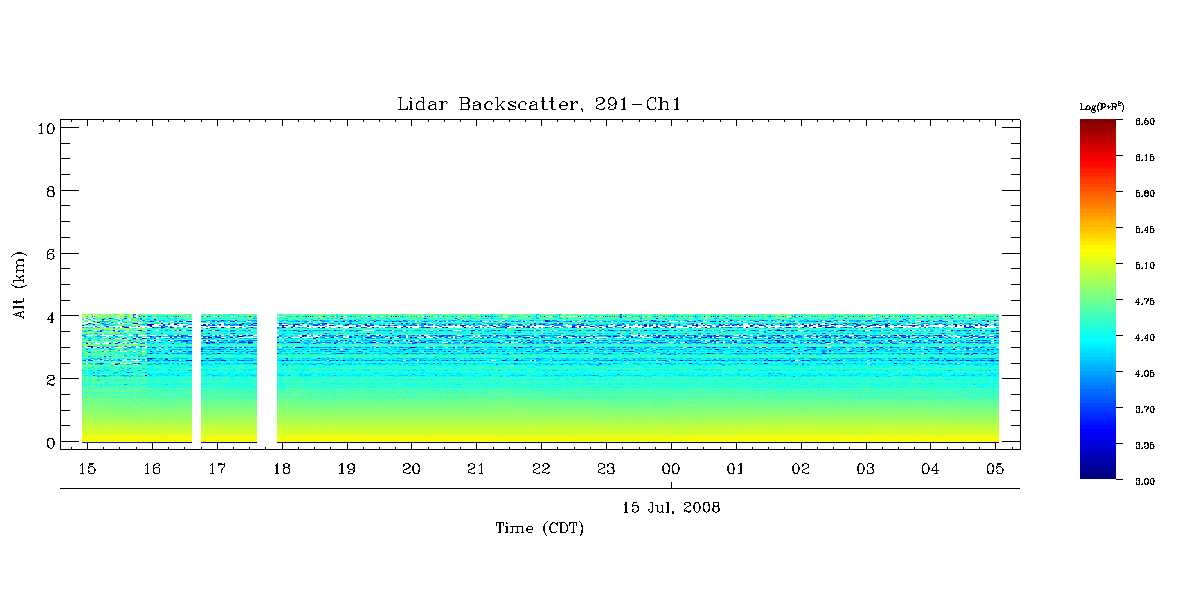

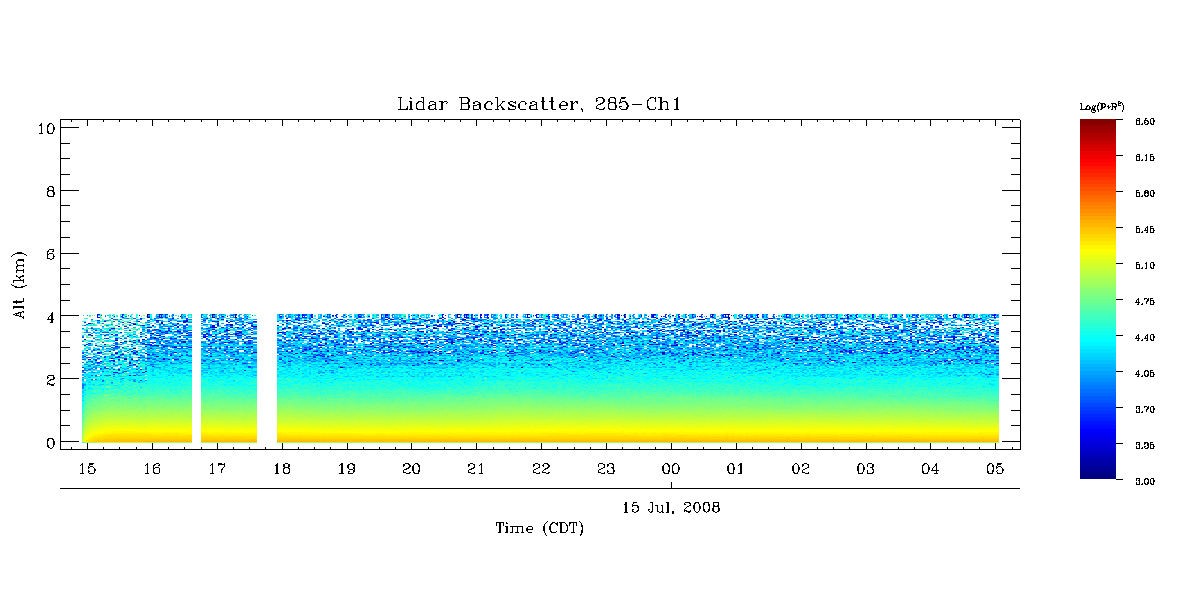

Range-corrected signal

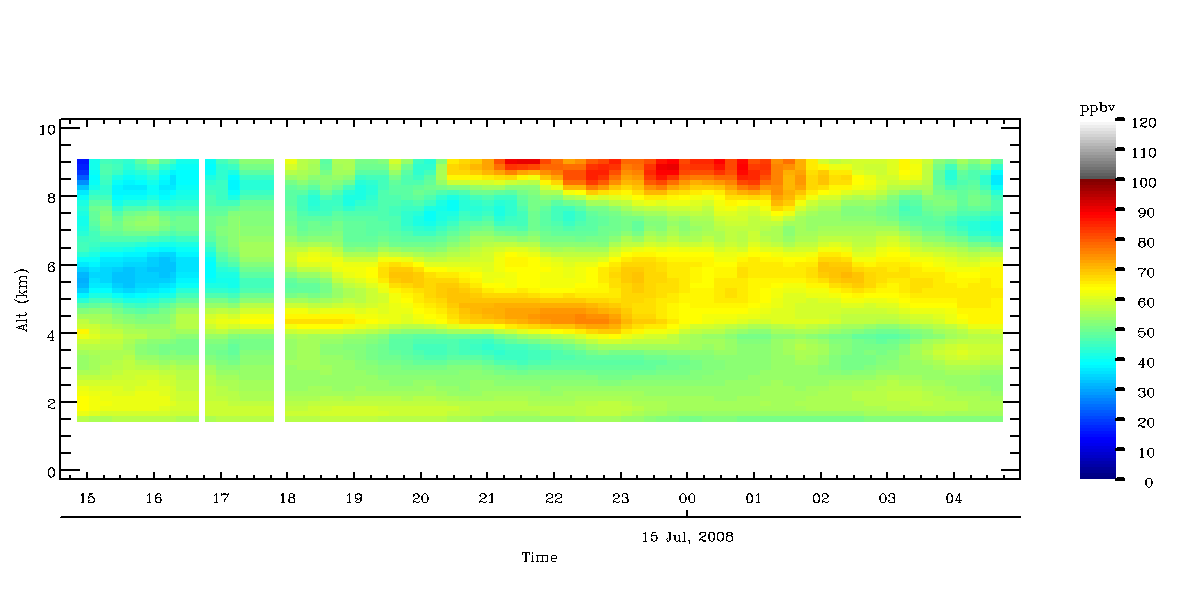

Ozone retrieval (10-min resolution)
