8/5/09

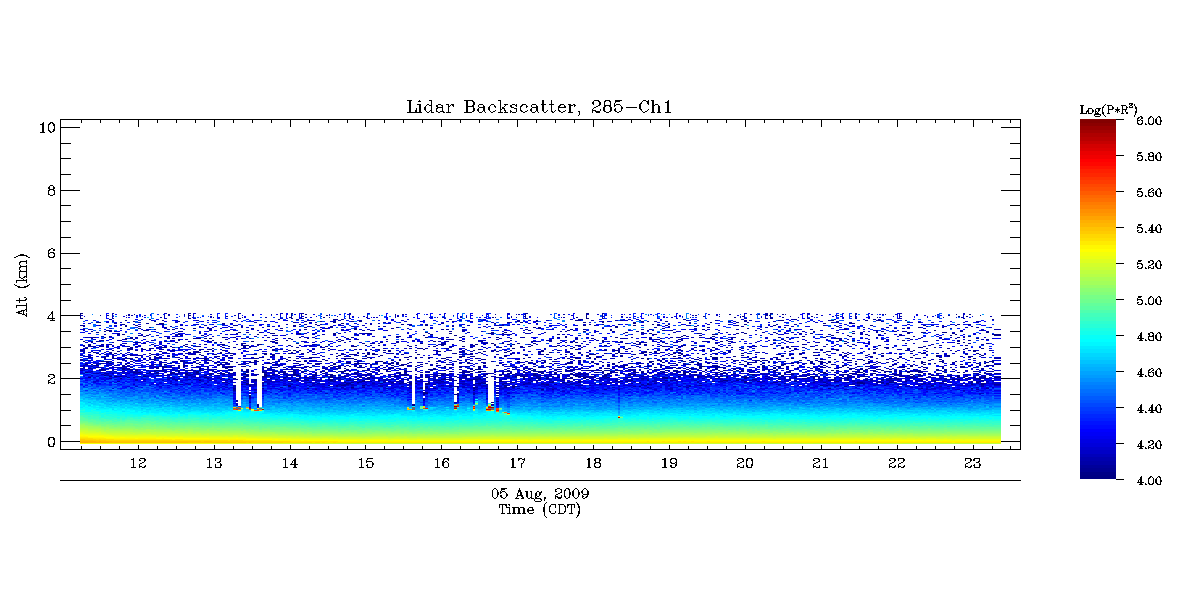

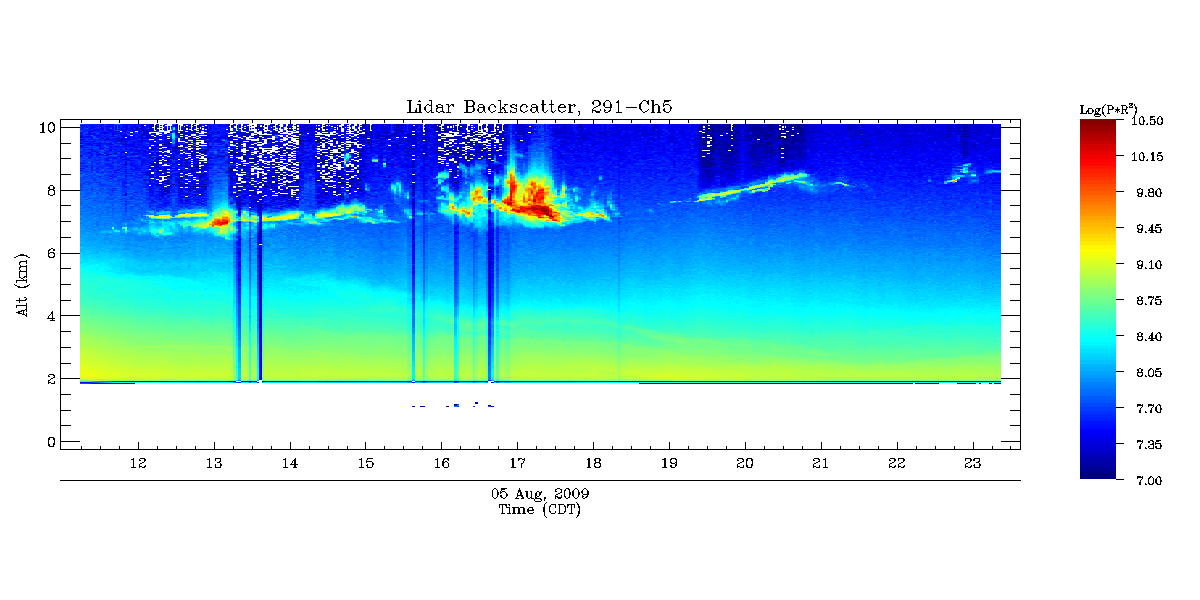

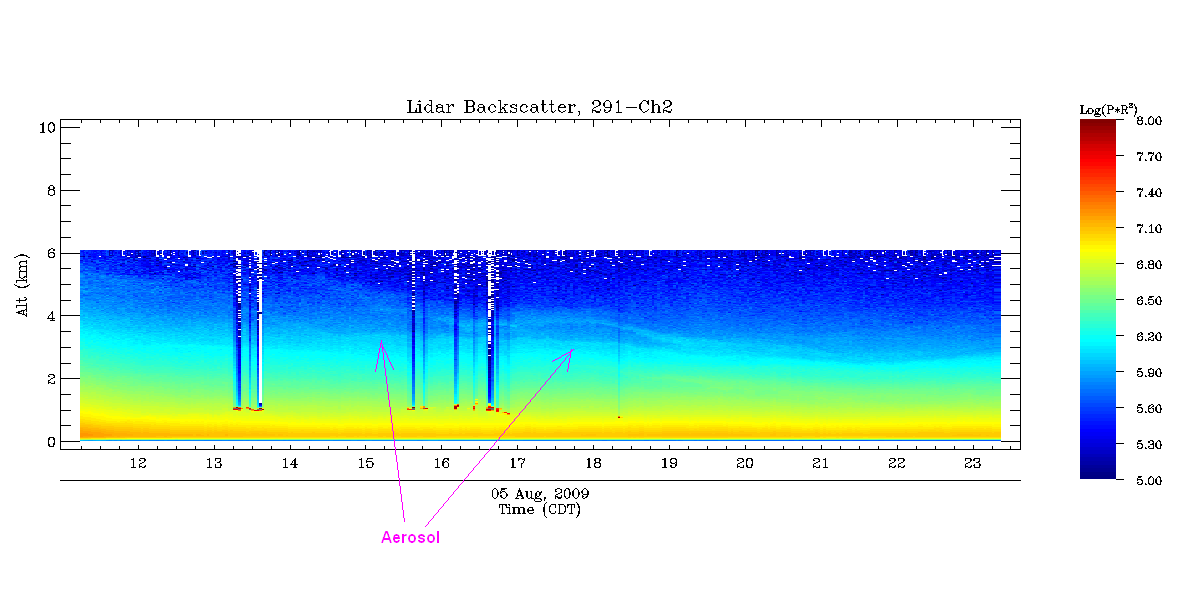

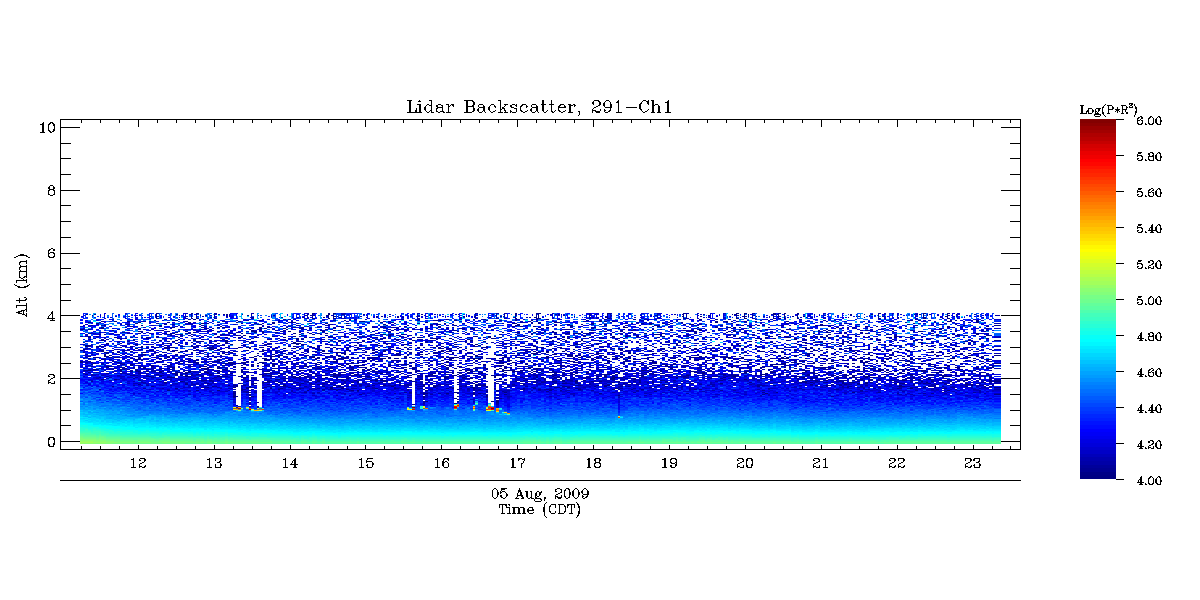

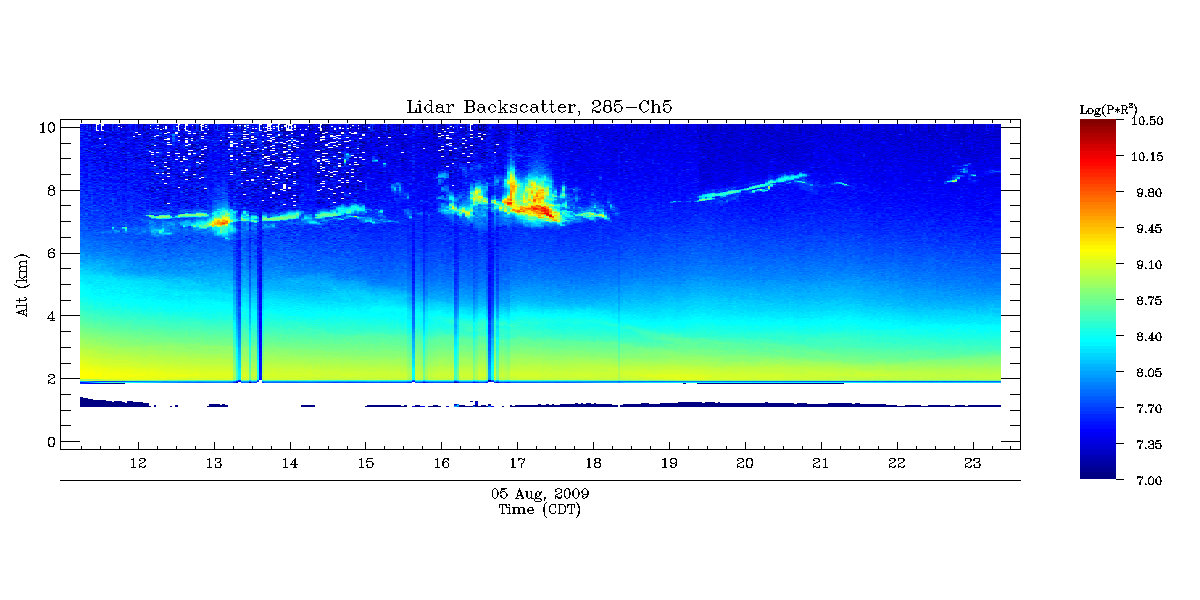

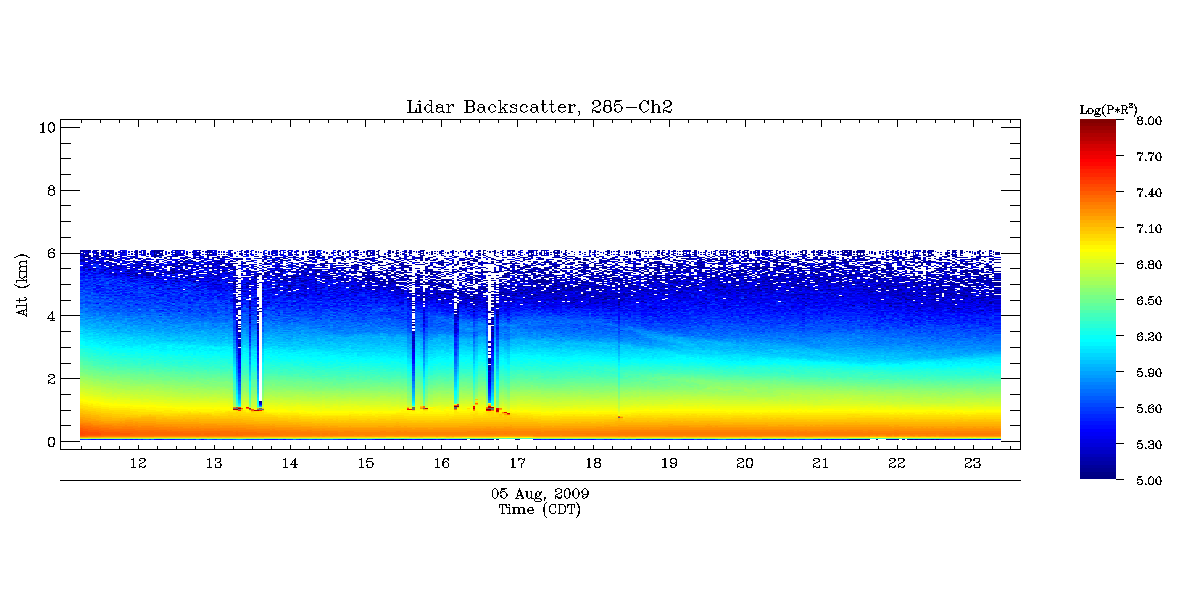

Range-corrected signal

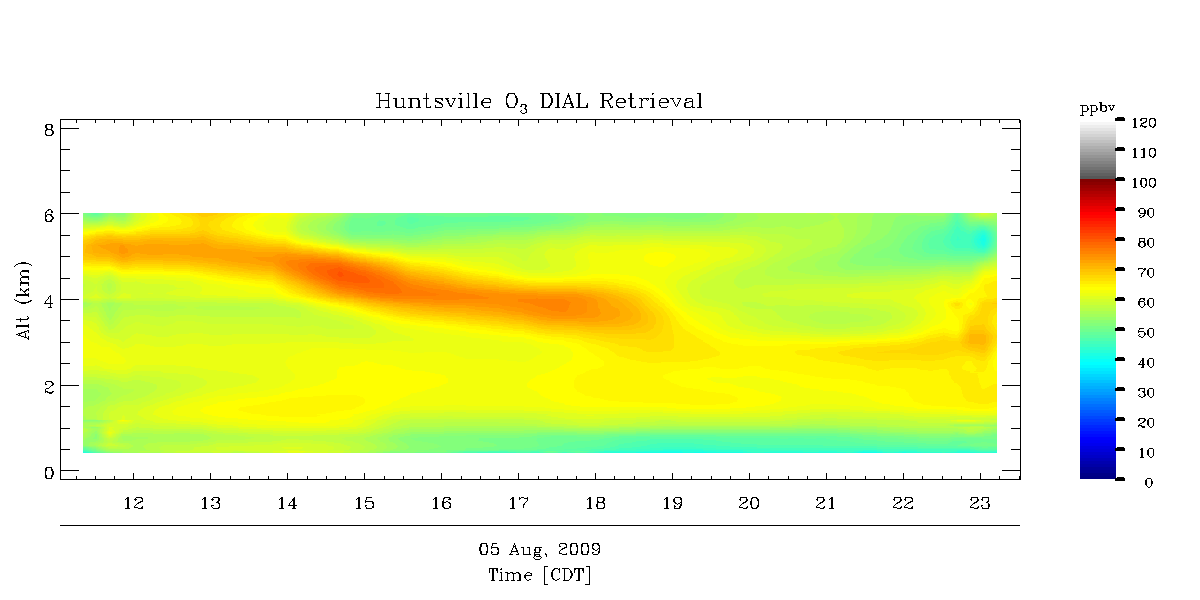

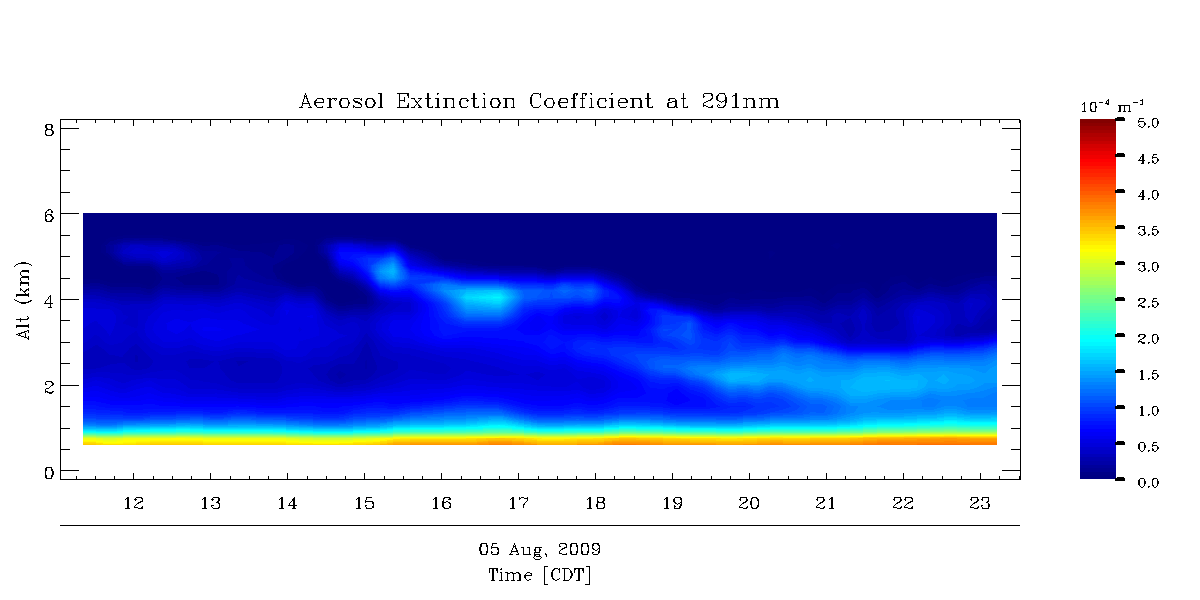

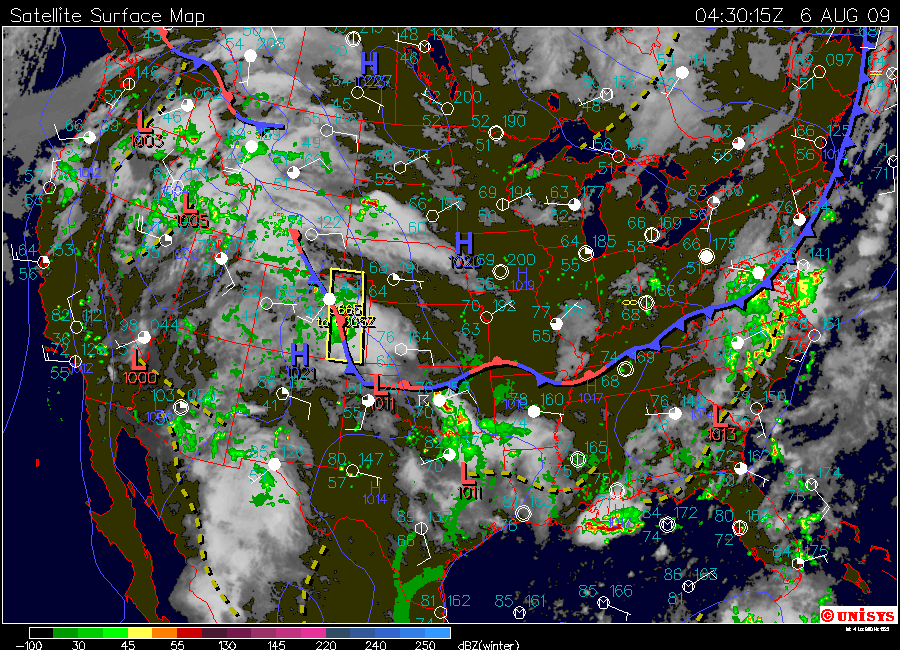

Ozone retrievals are produced only up to 6km due to clouds at ~7km. The ozone layer at 5km was already shown on yesterday's curtain plot. This ozone layer sinks to ~3km (also the aerosol) in the evening and becomes weak. This should be related to the mixing of different air masses when the cold front passes over Huntsville.

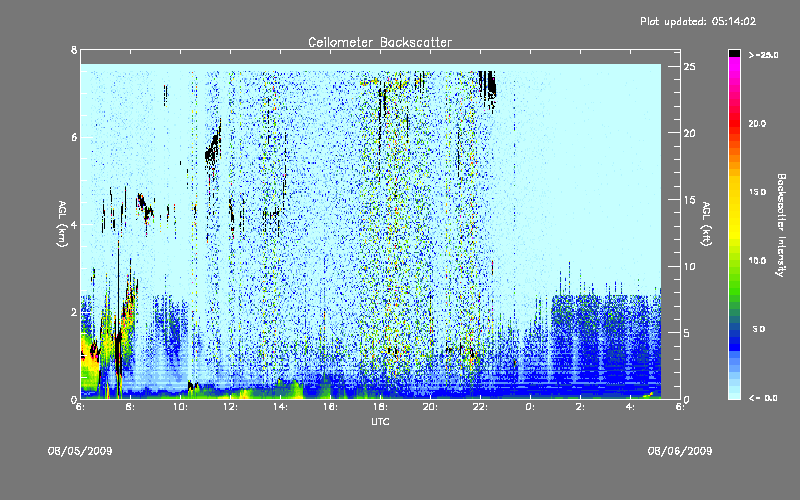

Ceilometer data source: http://vortex.nsstc.uah.edu/mips/data/current/ceilometer/
